Construction of Type FAS:

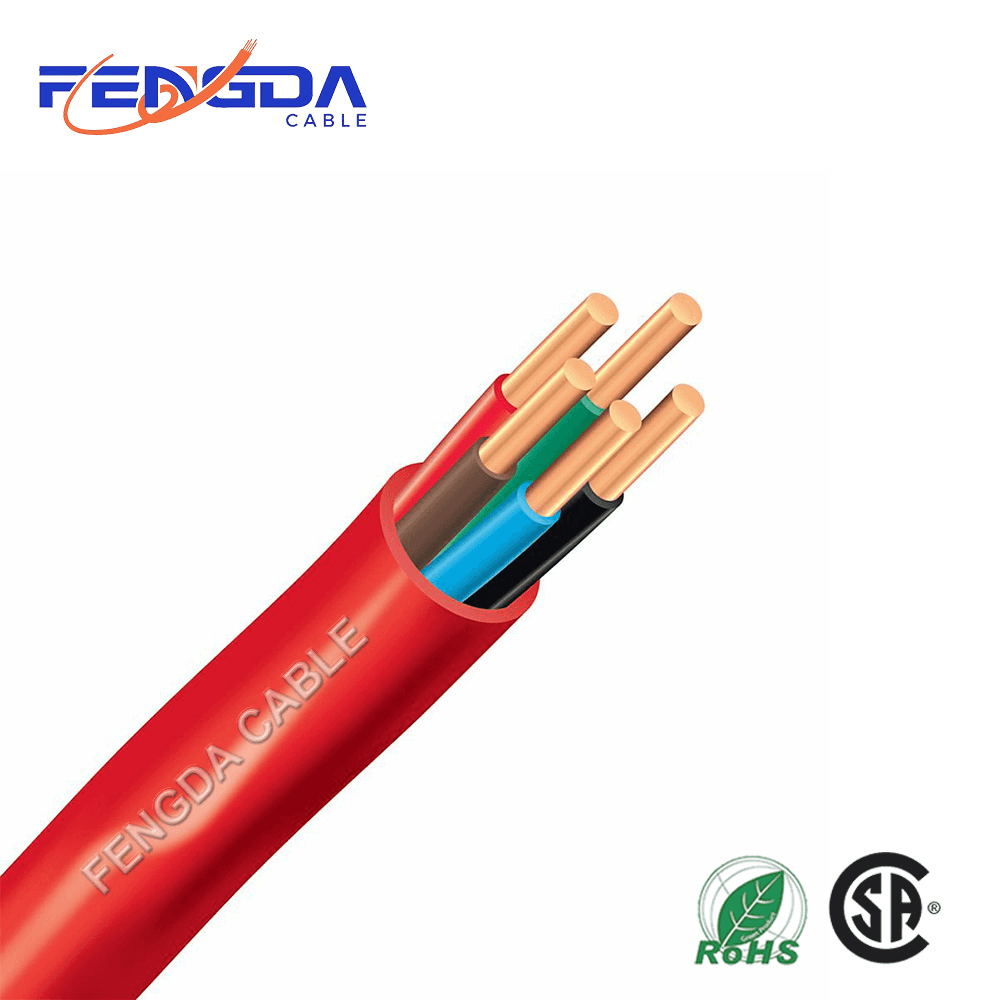

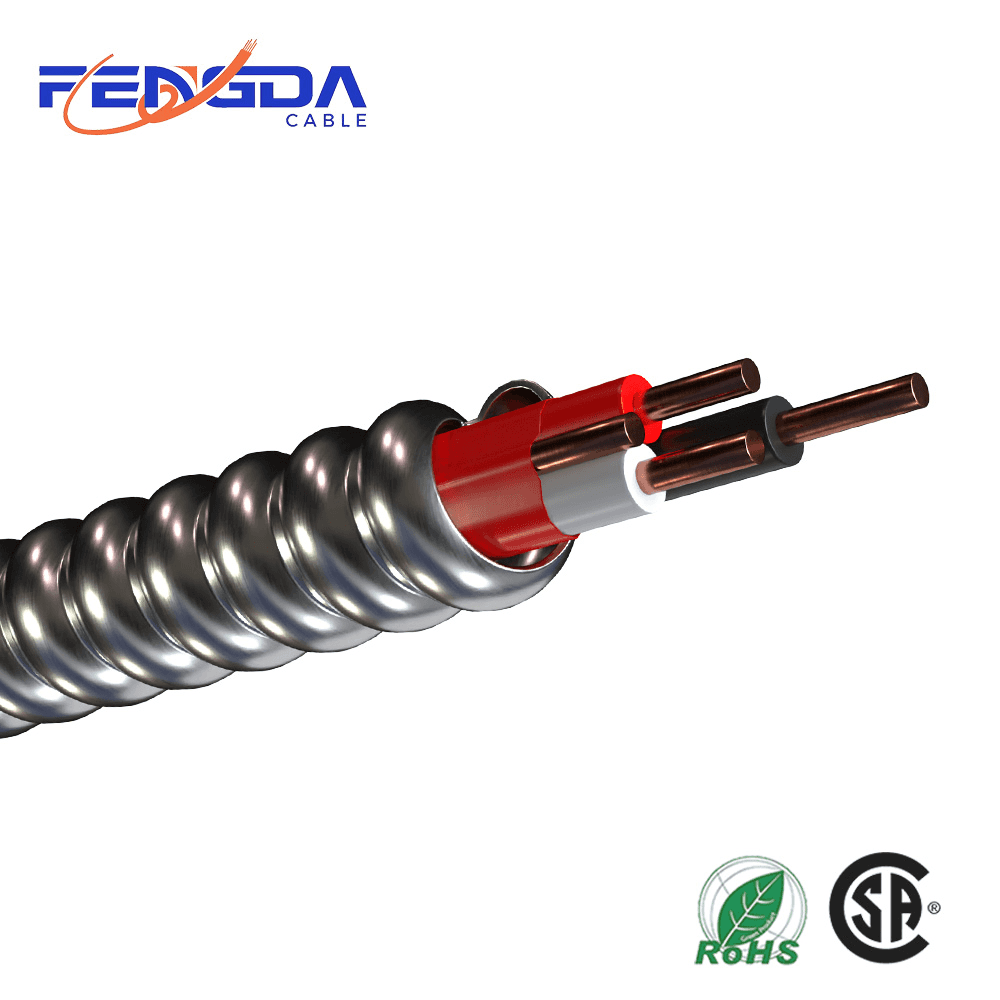

Solid bare copper conductors with colour-coded PVC insulation, twisted core. Unshielded version fitted with red PVC outer jacket; shielded variant equipped aluminum foil shield + tinned copper drain wire. Optional aluminum interlocked metal armour available for harsh installation.
Insulation of Type FAS:
Flame-retardant colour coded PVC
Jacket of Type FAS:
FT4 flame resistant red PVC jacket, sunlight resistant optional armour
Temperature Rating of Type FAS:
-20°C minimum installation temperature to 105°C continuous operating temperature
Voltage Rating of Type FAS:
300V
Compliance Standards:
CSA C22.2 No.208, CSA FT4 flame rating, complies with Canadian Electrical Code Part I Section 32
Send Inquiry
Specialized wiring for fire alarm, smoke detection and fire protective signaling systems in commercial, residential and public buildings. Also applicable to Class 2 low voltage security circuits, HVAC control wiring. Can be installed in cable trays, conduit, dry and damp indoor locations. Armoured FAS is suitable for areas requiring mechanical protection.
