AC90

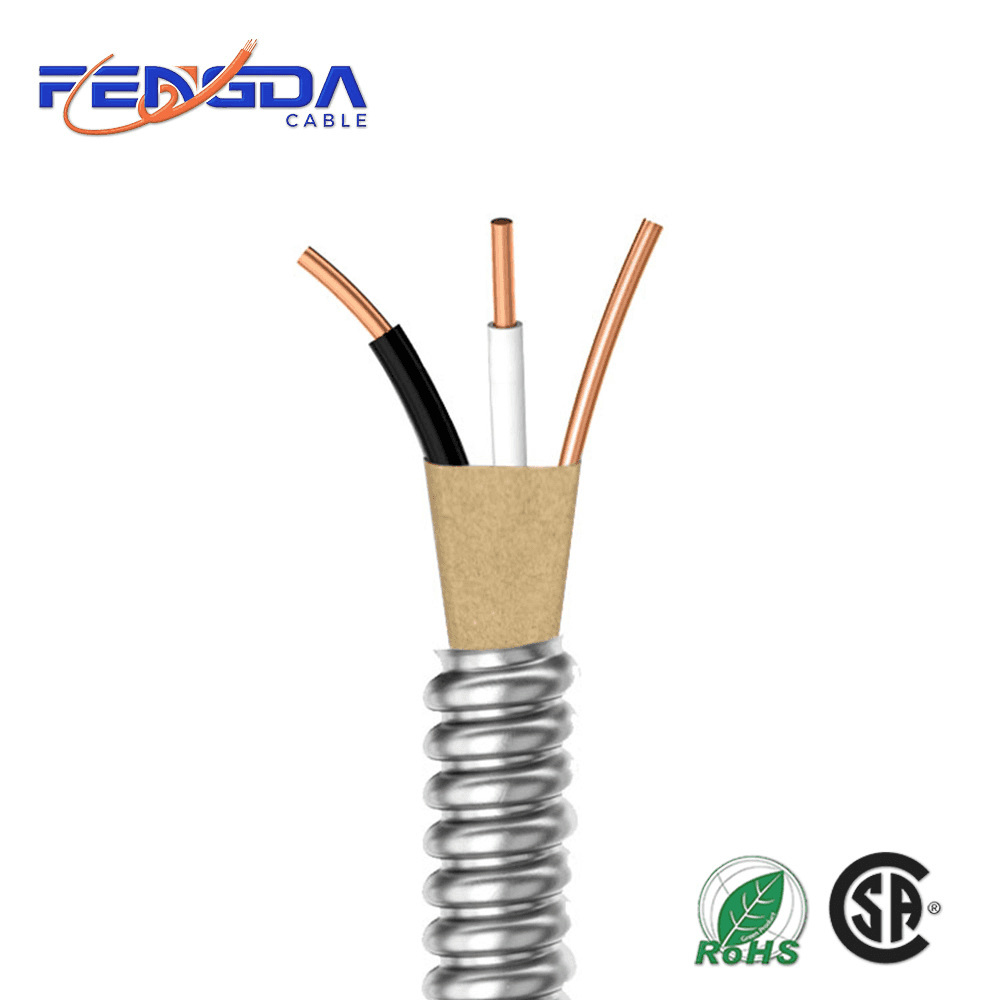

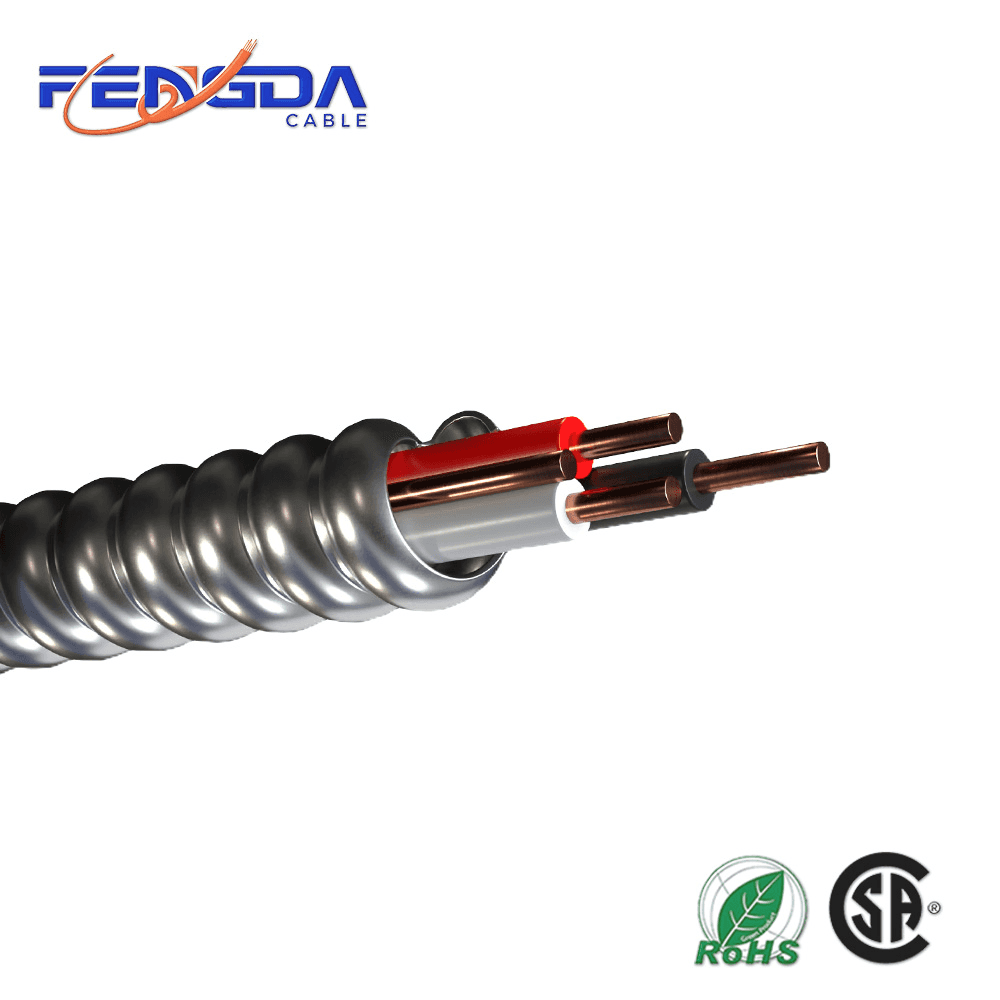

Construction: Solid/stranded copper circuit conductors + bare copper bonding wire; XLPE insulation, paper binder, aluminum interlocked armour.
Conductor: Bare solid or stranded copper (8AWG & larger stranded)
Insulation: Low-temperature RW90 XLPE
Jacket: Aluminum interlocked metal armour (no plastic outer jacket)
Voltage Rating: 600 Volts
Temperature Rating: Max 90°C dry; Passes -40°C cold bend & impact test
Compliance Standards: CSA C22.2 No.51-95
Send Inquiry
Technical
Application
Exposed & concealed wiring in dry locations, ventilated cable trays, commercial dry-area power wiring.
Package
