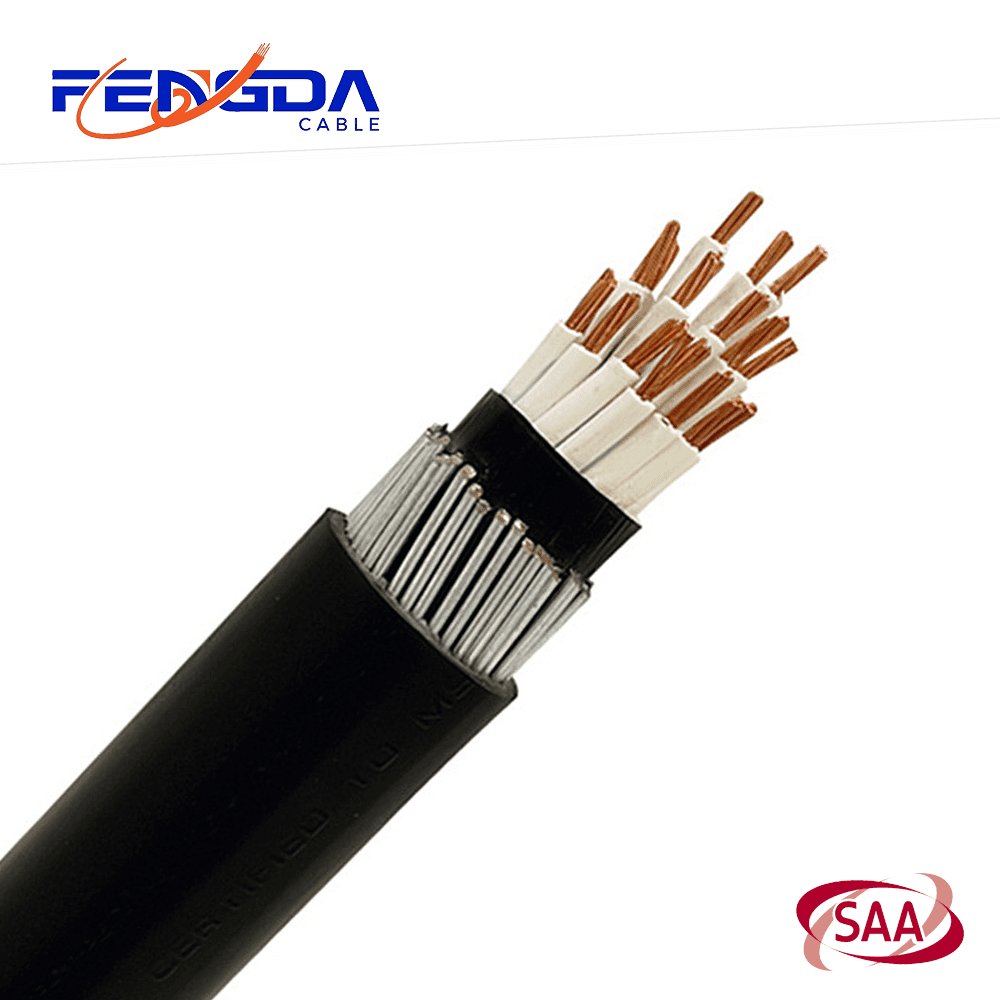

Conductor: Plain annealed copper (class 2 strands) of the type specified in AS/NZS 1125
Insulation: Active Core: PVC, V90, White with Black Numbering
Earth Core: PVC, V90, Green/Yellow
Separator: PET tape or non-woven tape
Bedding: PVC, 5V-90, Flame Retardant Black (UV Stabilised)
Armour: Single-layer galvanised (Mild) steel wires helically applied over bedding
Sheath: PVC, 5V-90, Flame Retardant Black (UV Stabilised) to AS 3808 Optional: Orange Sheath
Voltage Rating: 0.6/1kV
Operating Temperature: -250C to +750C, Max. 900C, short circuit temperature 1600C for 5 sec
Temperature at Surface: In Operation, -250C ~ 900C
Minimum Ambient Temperature: 00C after installation and only when cable is in a fixed position
Minimum Bending Radius:
18 x cable O.D. during installation
12 x cable O.D. after installation
Standards:
International: IEC 60502, IEC 60228, IEC 60332
Australian/New Zealand: AS/NZS 5000.1, AS/NZS 3808, AS/NZS 1125, AS/NZS 1660
Send Inquiry
0.6/kV PVC armoured multi-core control cables are mostly used for control circuits in buildings, industrial plants, mining and the petroleum industry where extra mechanical protection is required. The cables are suitable for installation indoor/outdoor, enclosed in conduit and in underground duct, and buried directly in earth.
