Standards：
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

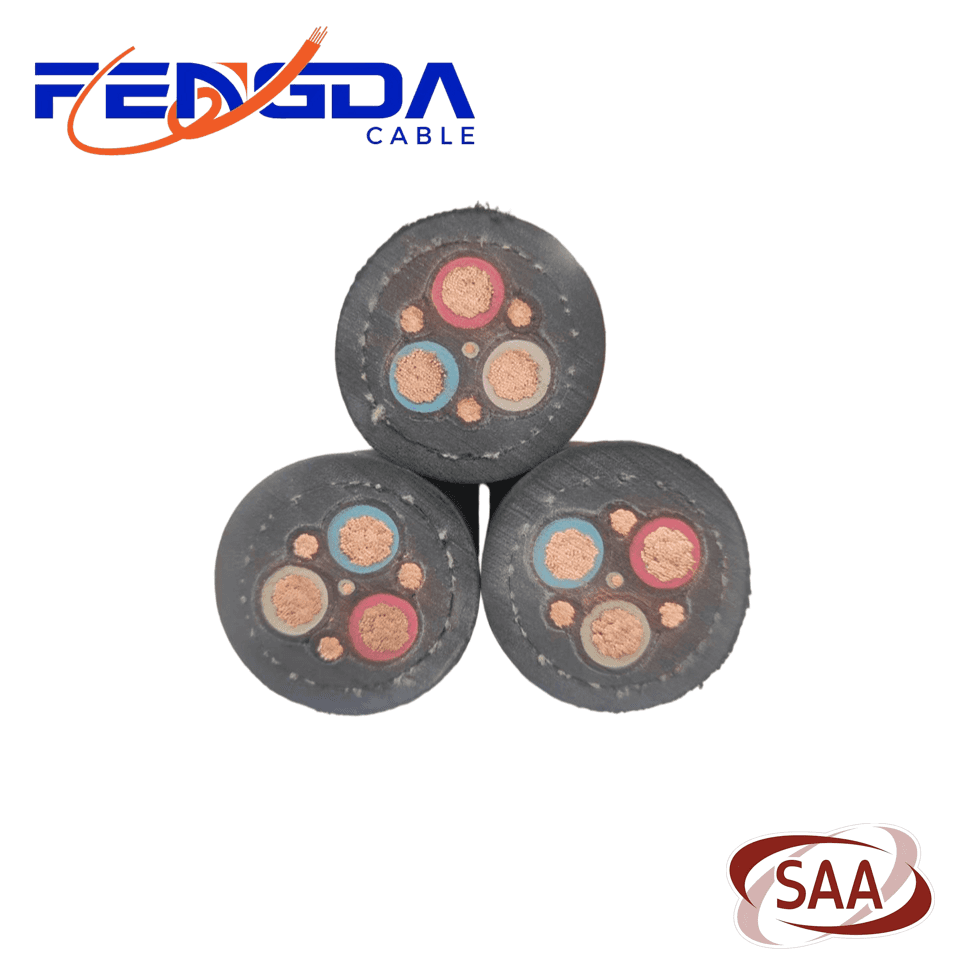

Construction：
3×Conductors: Flexible stranded tinned annealed copper conductor.
Insulation: EPR.
Insulation Screen: Semiconductive elastomer.
Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn.
Cradle Separator: Semiconductive PCP.
1×Central Extensible Pilot: EPR covered flexible stranded tinned copper conductor.
Sheath: Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.
Send Inquiry
Metal screened power cores and single extensible pilot. 1.1/1.1 kV. Cable used primarily for hand-held boring machines and as a flexible lead to other equipment where heavy-duty service is required. Note, certain regulatory authorities limit the use of this cable to 250/250 V. These cables are mainly used for hand-held boring machines and drills.
