Conductor: Plain annealed copper (class 2 strands) of the type specified in AS/NZS 1125
Insulation:
Active Core: PVC, V90, White with Black Numbering
Earth Core: PVC, V90, Green/Yellow
Sheath: PVC, 5V-90, Flame Retardant Black (UV Stabilised) Optional: Orange Sheath
Voltage Rating: 0.6/1kV
Operating Temperature: -25℃ to +75℃, Max. 90℃, short circuit temperature 160℃ for 5 sec
Temperature at Surface: In Operation, -25℃ ~ 90℃
Minimum Ambient Temperature: 0℃ after installation and only when cable is in a fixed position
Minimum Bending Radius:
10 x cable O.D. during installation
6 x cable O.D. after installation
Standards:
International: IEC 60502, IEC 60228, IEC 60332
Australian/New Zealand: AS/NZS 5000.1, AS/NZS 3808, AS/NZS 1125, AS/NZS 1660
Send Inquiry

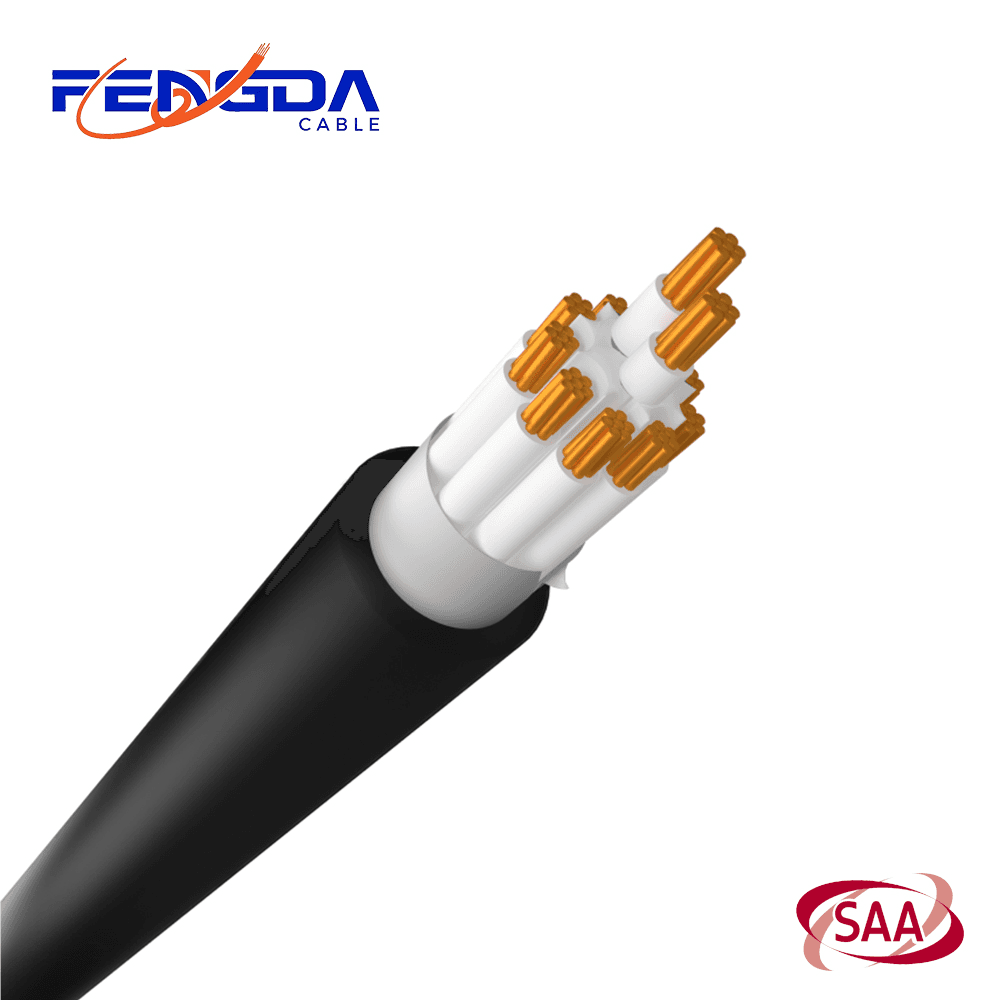

0.6/1kV PVC Sheathed multi-core control cables are mostly used for control circuits in buildings, industrial plants, gantry wiring and road transport depots where not subject to mechanical damage. The cables are suitable for installation indoor/ourtdoor, enclosed in conduit and in underground duct.
