Type 240 1.1-11KV
Approvals
AS/NZS 1802
Behaviour in flame and fire
Fire retardant
Temperature range
Maximum operating temperature: +90°C
Minimum operating temperature: -25 °C
Flexibility
Flexible
Resistance to
Chemical exposure: Very good/Frequent
Mechanical impact: Heavy
Water exposure:
Immersion/Temporary coverage
Solar radiation and
weather exposure: Suitable for direct exposure
Send Inquiry
Technical
Application

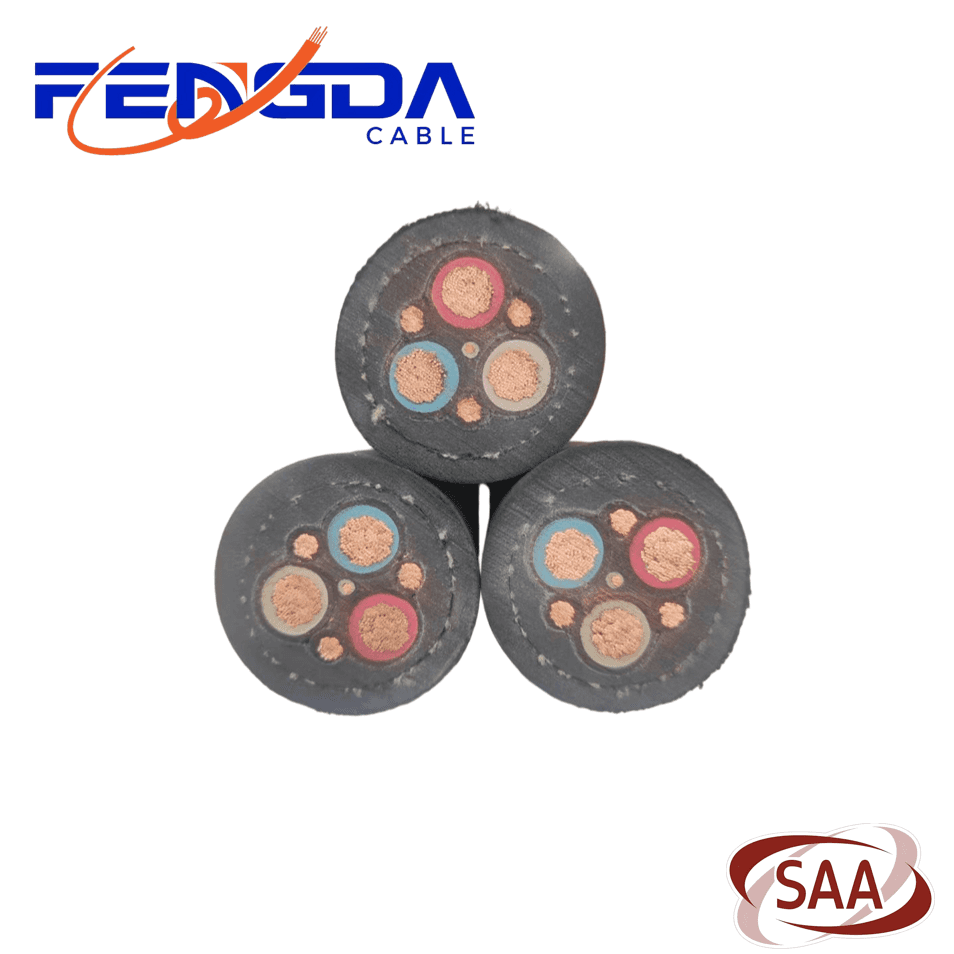

Metal screened power cores and three separate pilot conductors. 1.1/1.1 kV to 11/11 kV. Cable used extensively for feeder connection between transformer and gate-end box or similar, or as continuous miner cable or feeder cables to pumps. Having three pilots, the cable can be used in long runs, without compromising pilot control protection system resistance limitations.
Package
