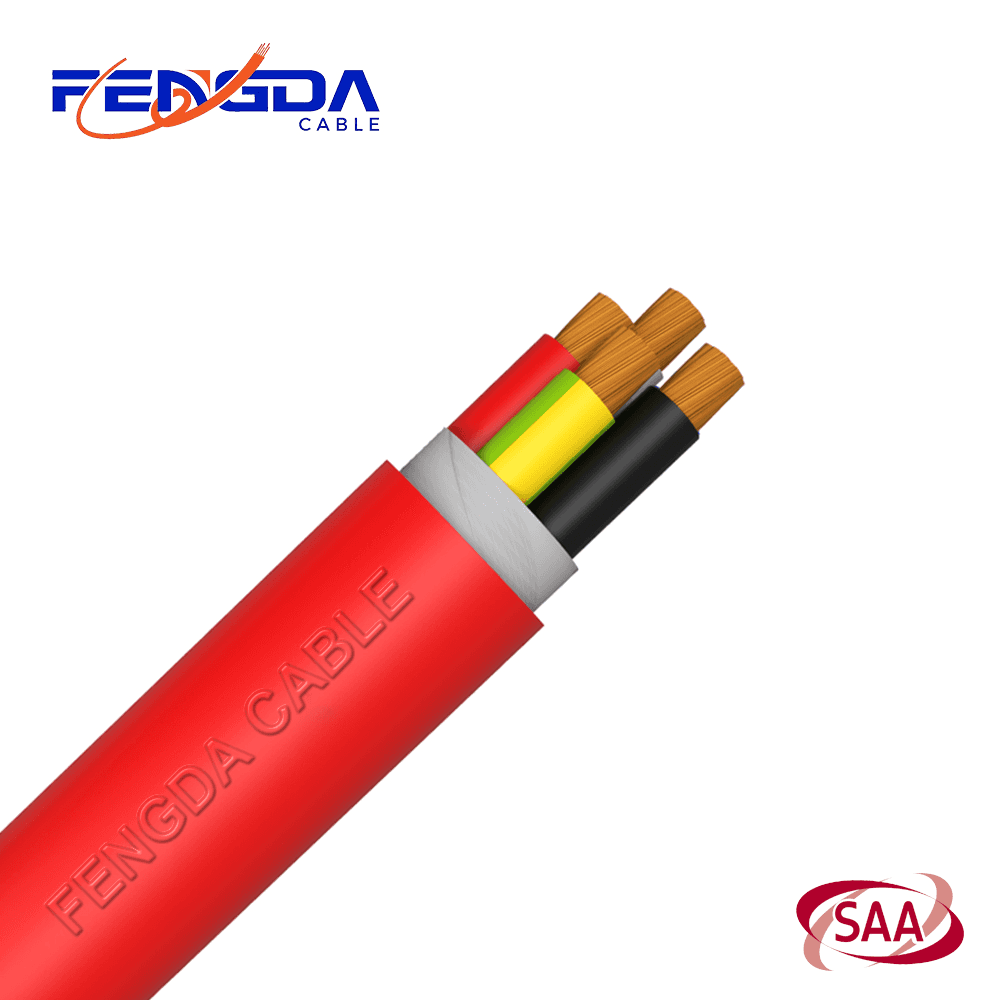

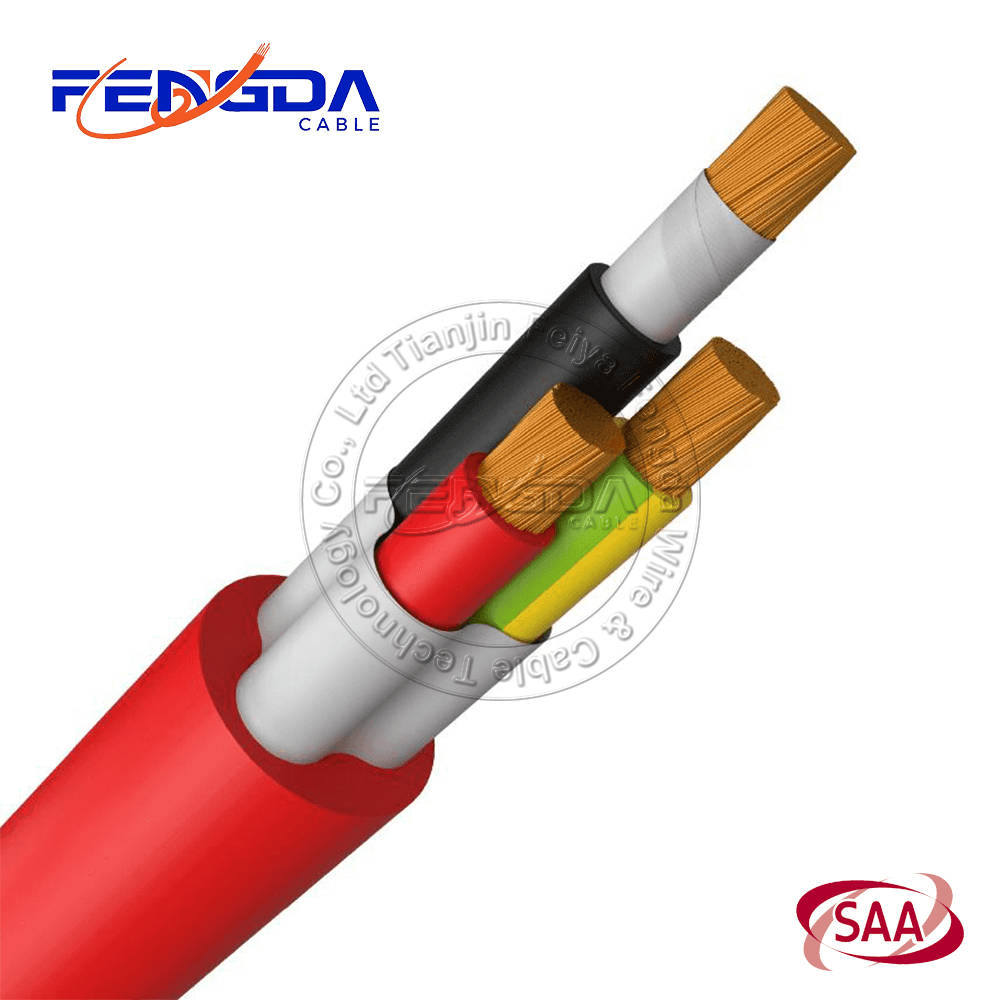

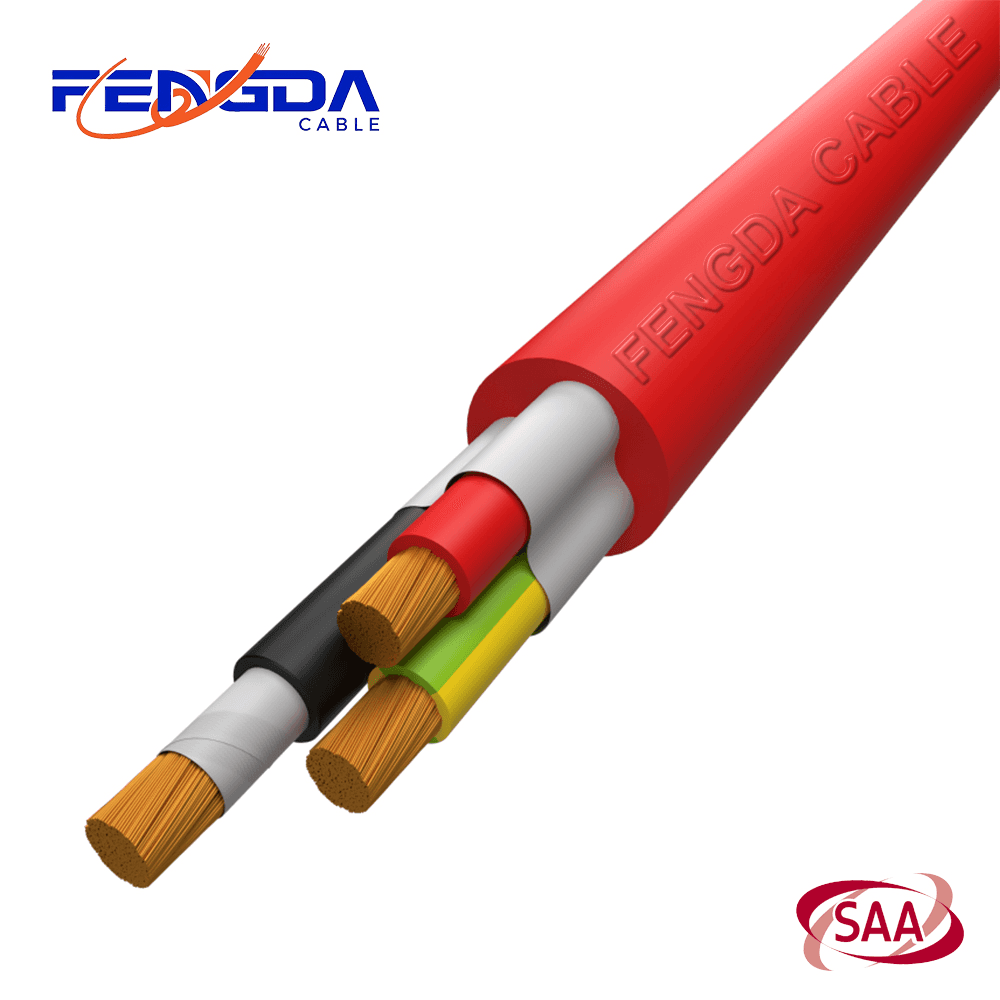

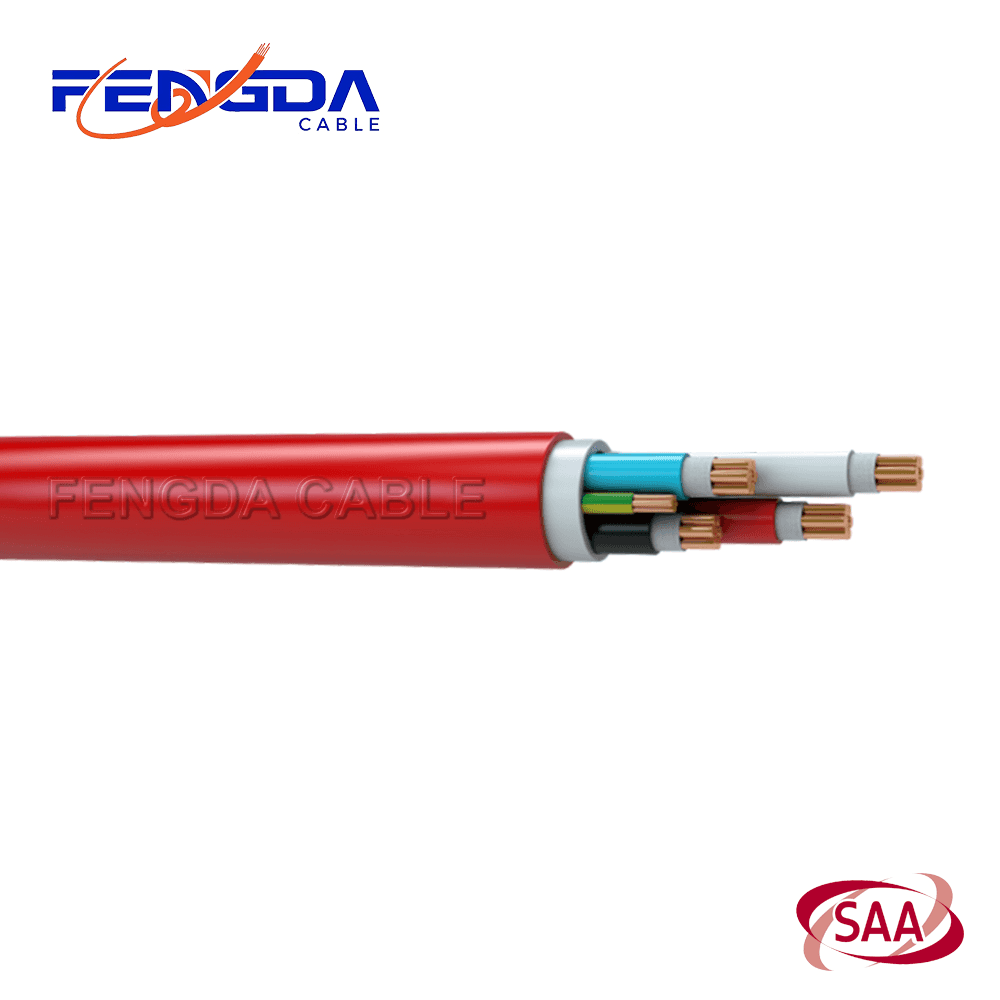

Multicore X-HF-110 Insulated Fire Rated Cables 0.6/1kV, Flexible Cu, LSZH, 110℃
Description
Conductor: Class 5 Flexible Plain Annealed Copper
Fire Barrier: Mica Tape
Insulation: Low Smoke Zero Halogen X-HF-110
Sheath: Low Smoke Zero Halogen HFS-110-TP
Core Identification
Insulation: Red, White, Blue, Black, Green/Yellow
Sheath: Red
Technical Data
Voltage Rating: 0.6/1kV
Operating Temperature: -40℃ to +110℃
Short Circuit Temperature: 250℃ for 5 sec
Standards Compliance
AS/NZS 3013 (WS52W)
AS/NZS 5000.1
AS/NZS 1125
AS/NZS 3808
AS/NZS 1660
Send Inquiry
Technical
Application
Designed for fire-resistant power and control circuits in commercial, industrial, and public buildings, maintaining critical circuit integrity during fires with low-smoke, zero-halogen performance.
Package
