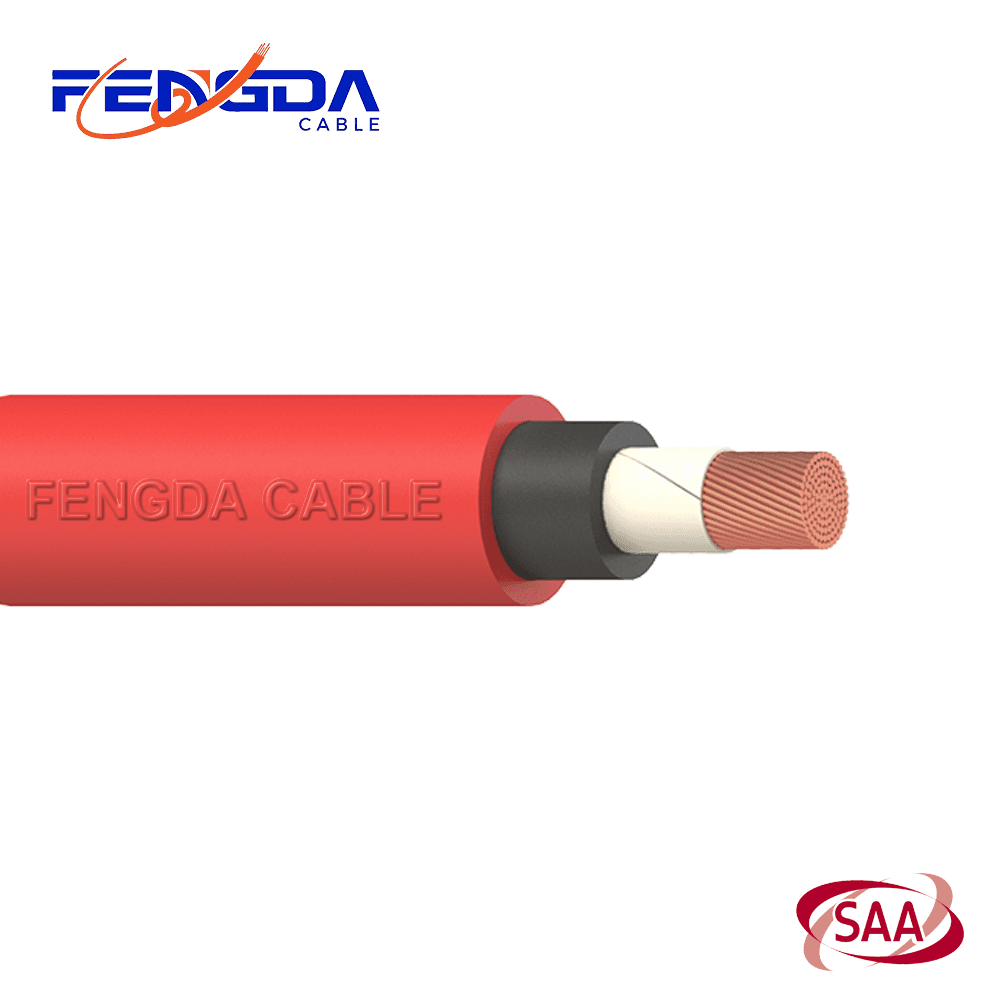

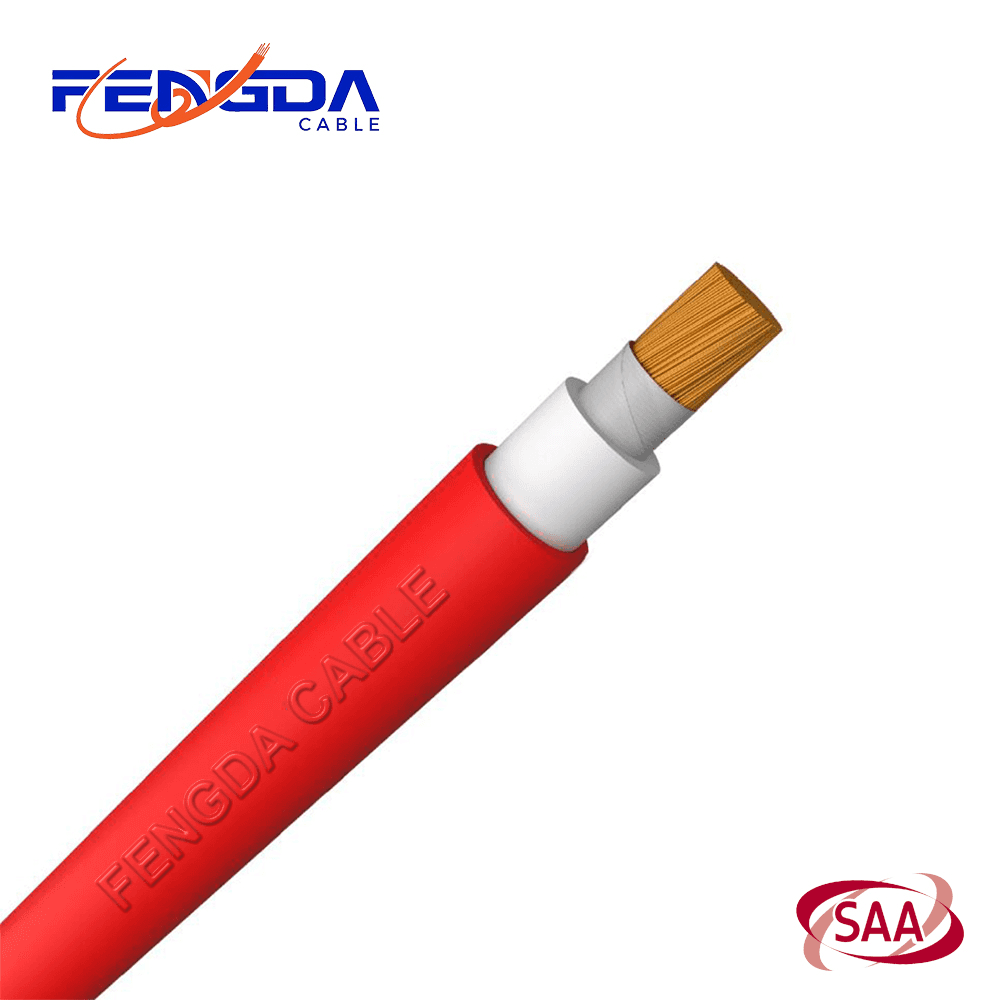

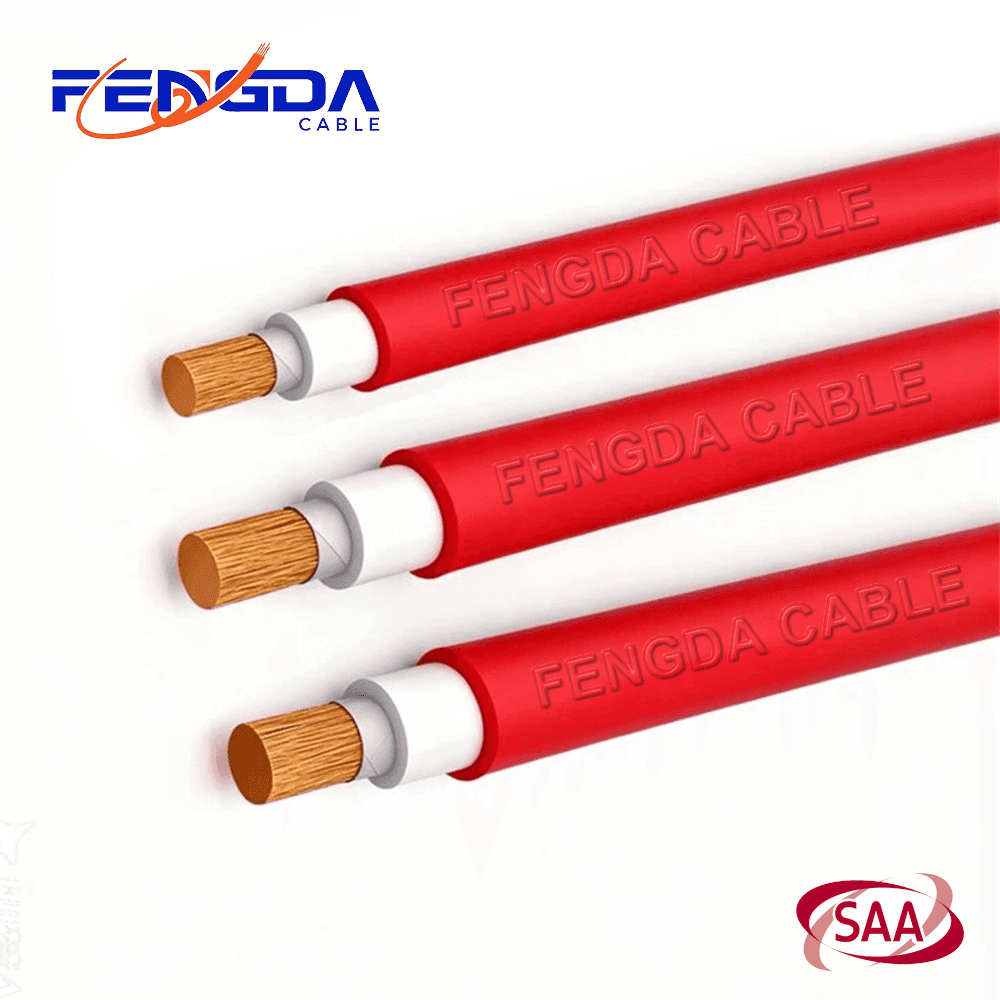

1C X-HF-110 Fire Rated Cables 0.6/1kV, Flexible Cu, LSZH, 110℃
Description
Conductor: Class 5 Flexible Plain Annealed Copper
Fire Barrier: Mica Tape
Insulation: Low Smoke Zero Halogen X-HF-110
Sheath: Low Smoke Zero Halogen HFS-110-TP
Core Identification: Black
Sheath Colour: Red
Technical Data
Voltage Rating: 0.6/1kV
Operating Temperature: -40°C to +110°C
Short Circuit Temperature: 250°C for 5 sec
Standards Compliance
AS/NZS 3013 (WS52W)
AS/NZS 5000.1
AS/NZS 1125
AS/NZS 3808
AS/NZS 1660
Send Inquiry
Technical
Application
Suitable for fire-resistant power wiring in buildings, commercial facilities and public areas. Low smoke halogen-free for safety in fire scenarios.
