PVC Insulated Earth Cable Class 5 Copper Conductor
Description
Conductor: Class 5 Plain Annealed Copper (Flexible Stranded)
Insulation: PVC V-90
Core Identification: Red, Green, Yellow, Blue, Black, White, Yellow/Green, or as per Client Requirement
Insulation: PVC V-90
Core Identification: Red, Green, Yellow, Blue, Black, White, Yellow/Green, or as per Client Requirement

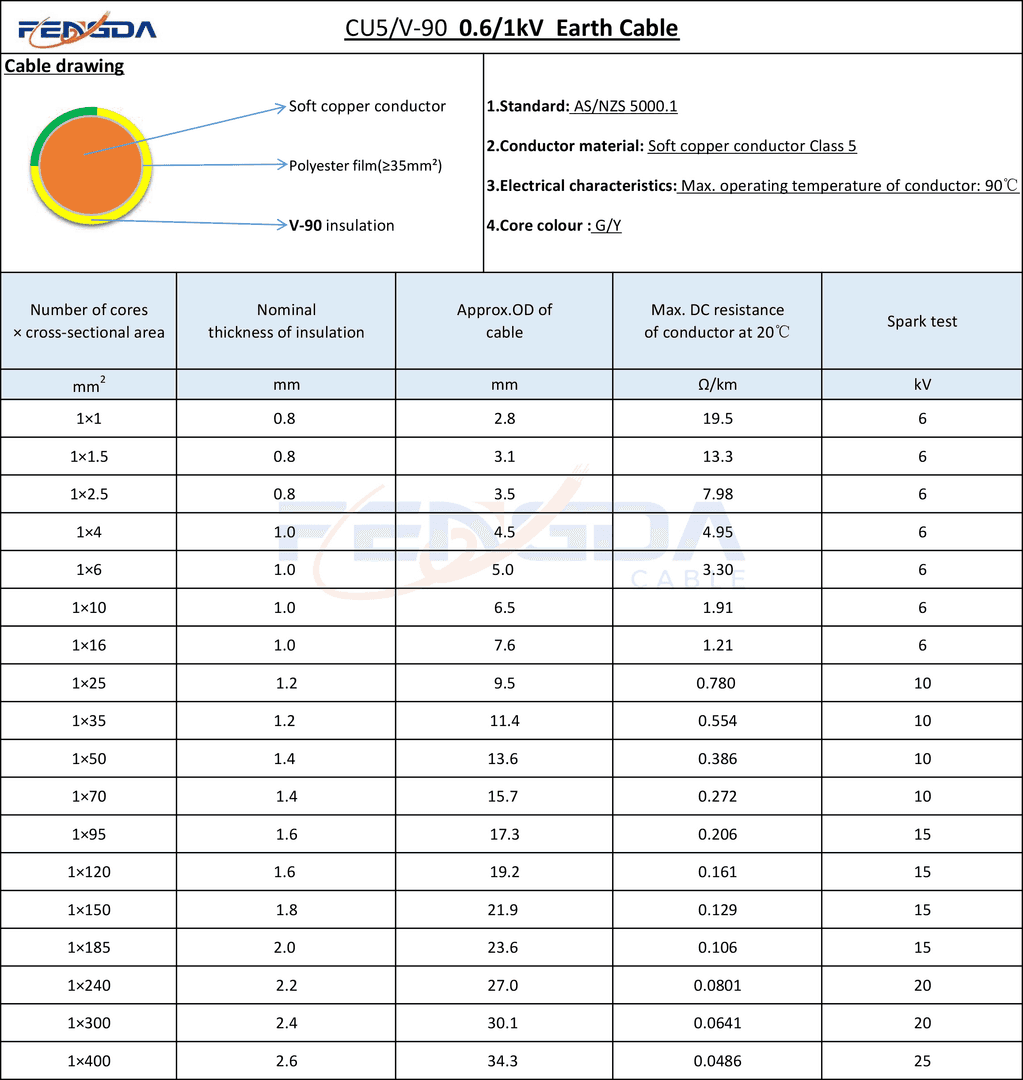

Technical Data
Voltage Rating: 0.6/1kV
Operating Temperature: -10°C to +75°C, Maximum 90°C*
*Not subject to severe mechanical pressure at temperatures higher than 75°C.
Short Circuit Temperature: 160°C for 5 sec
Operating Temperature: -10°C to +75°C, Maximum 90°C*
*Not subject to severe mechanical pressure at temperatures higher than 75°C.
Short Circuit Temperature: 160°C for 5 sec
Standards Compliance
AS/NZS 5000.1
AS/NZS 3808
AS/NZS 1125
AS/NZS 1660.5.6 (Equivalent to IEC 6032-1)
AS/NZS 3808
AS/NZS 1125
AS/NZS 1660.5.6 (Equivalent to IEC 6032-1)
Send Inquiry
Technical
Application

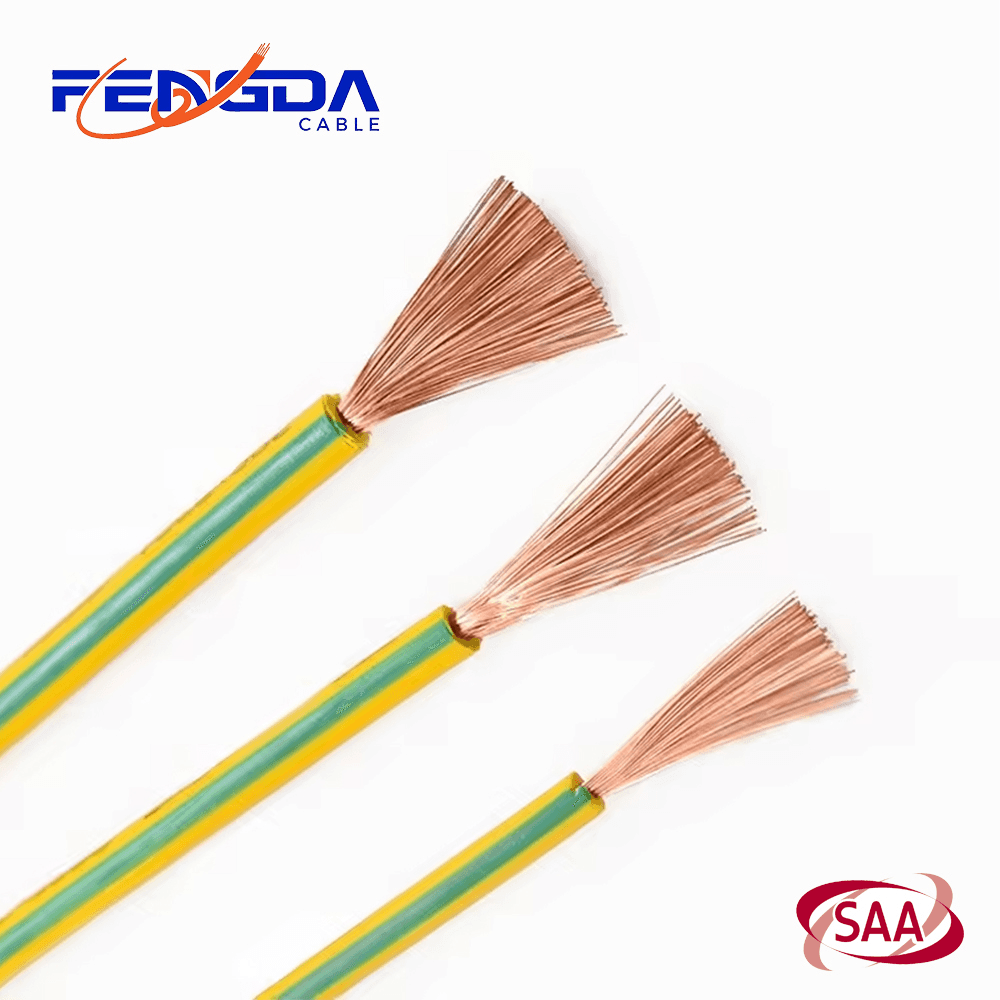

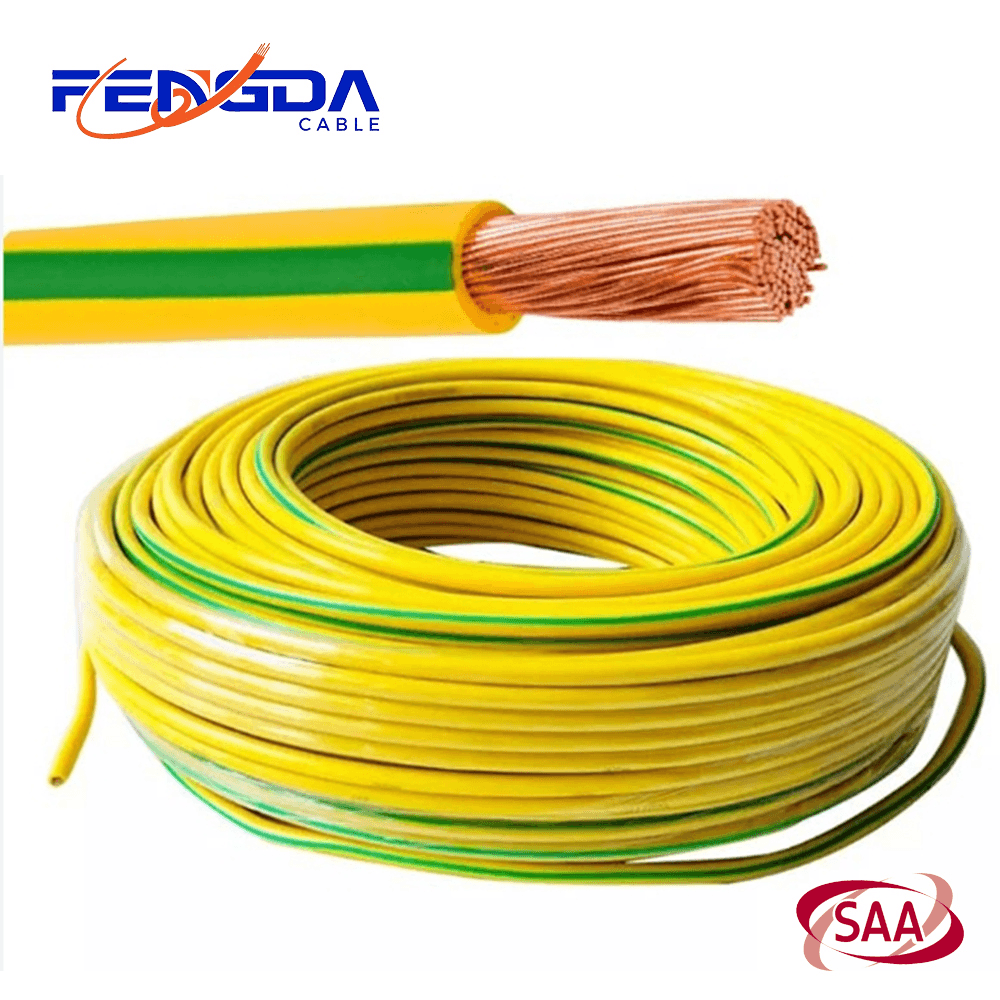

This green/yellow PVC insulated single-core flexible copper wire is specially used as protective earth conductor for low-voltage electrical systems in residential, commercial, and industrial buildings in Australia & New Zealand.
- Protective earthing wiring for power distribution circuits, electrical appliances, and mobile/portable equipment.
- Earth connection for distribution boards, switchgear, and control cabinets.
- Earthing circuits for lighting, sockets, air conditioners, water heaters, and industrial machinery.
- Suitable for installation in conduits, trunking, cable trays, wall cavities, underground ducts, and wiring occasions requiring frequent bending.
Important Notes
- Suitable for fixed installation and flexible wiring use, applicable to occasions needing bending and moving wiring.
- Rated voltage: 0.6/1 kV; maximum conductor operating temperature: 90°C.
- Indoor installation or outdoor use with UV protection; avoid direct long-term sunlight exposure.
- Compliant with AS/NZS 5000.1 and relevant Australian electrical installation standards.
Package
