Conductors

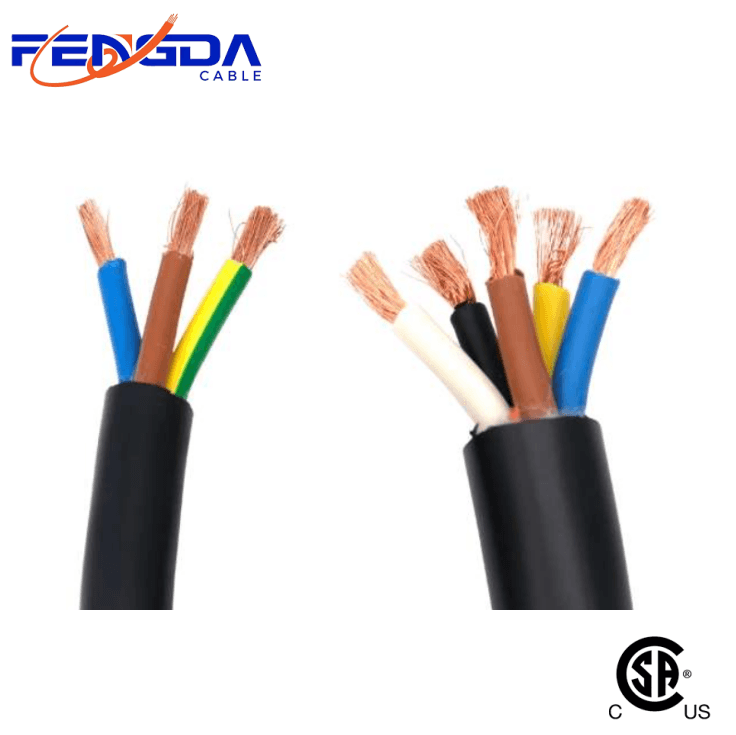

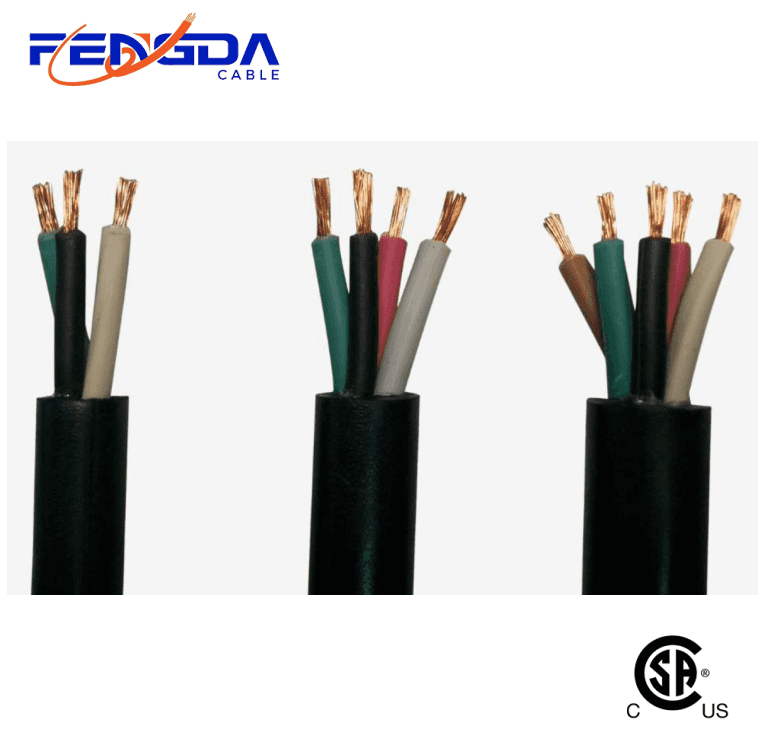

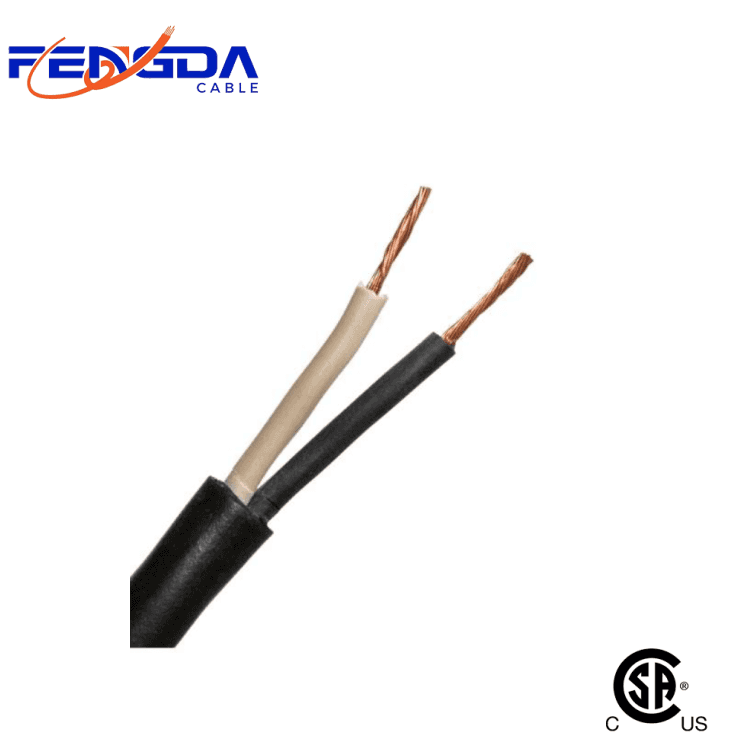

SJOW cords have stranded conductors made from pure copper. Available sizes are from 18 to 10 American Wire Gauge (AWG). The number of conductors is two, three, or four.
Insulation
AWC SJOW cables have flexible (EPDM) rubber insulation. Properties of EPDM include good oil, water, chemical, heat, and ultraviolet resistance. Standard insulation colors include white or gray for the neutral conductor and green or green/yellow for the ground conductor.
Jacket
Jacket materials are either (CPE) or neoprene. Both materials have good oil, abrasion, and weather-resistance properties.
SJOW stands for:
S = Service Cord (600 Volts)
J = Junior Service Cord (300 Volts)
O = Oil Resistant outside jacket
W = CSA designation for weather/water resistance
Send Inquiry
You can use a SJOW portable service cord to supply power to portable tools and equipment. These include power tools, small motors, and electrical equipment in garages, construction sites, and outdoors. SJOW cord is strong with excellent abrasion, oil, and chemical resistance and is flexible down to minus 40 Celsius. You can use it for heavy-duty applications in all weathers.
