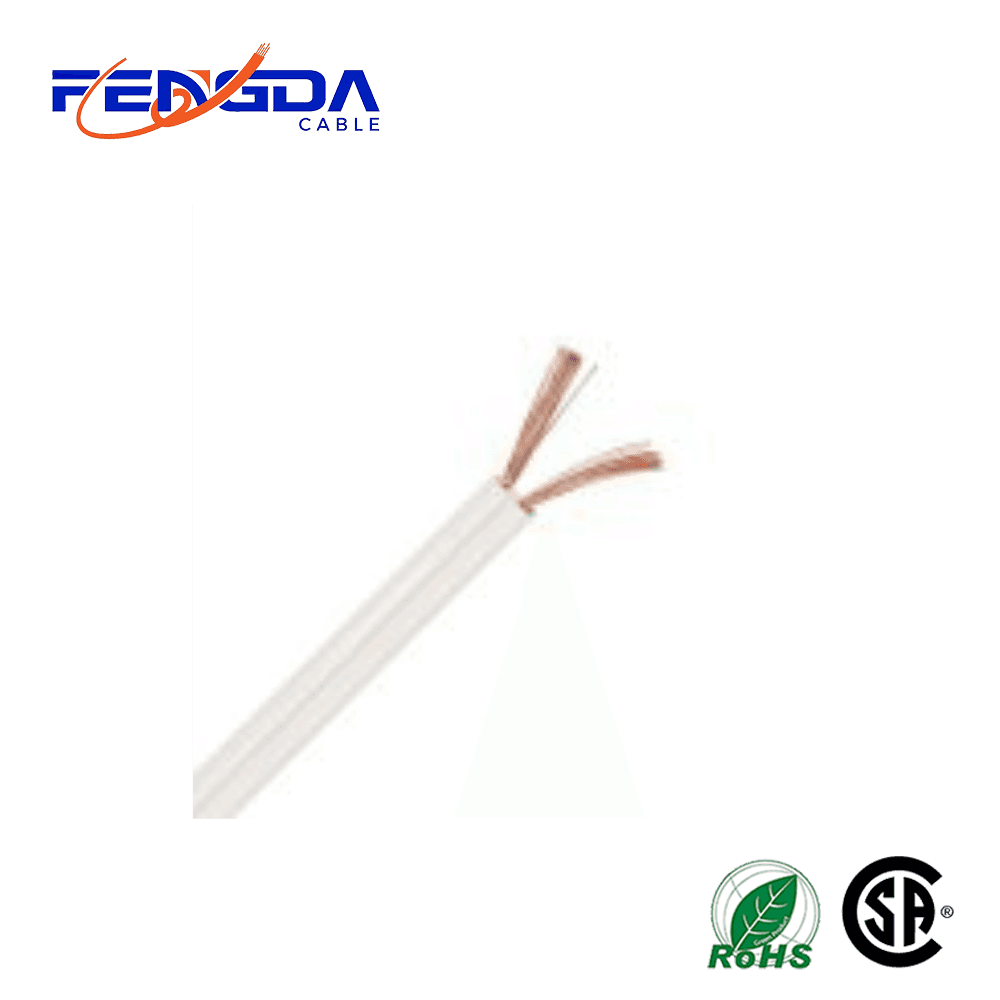

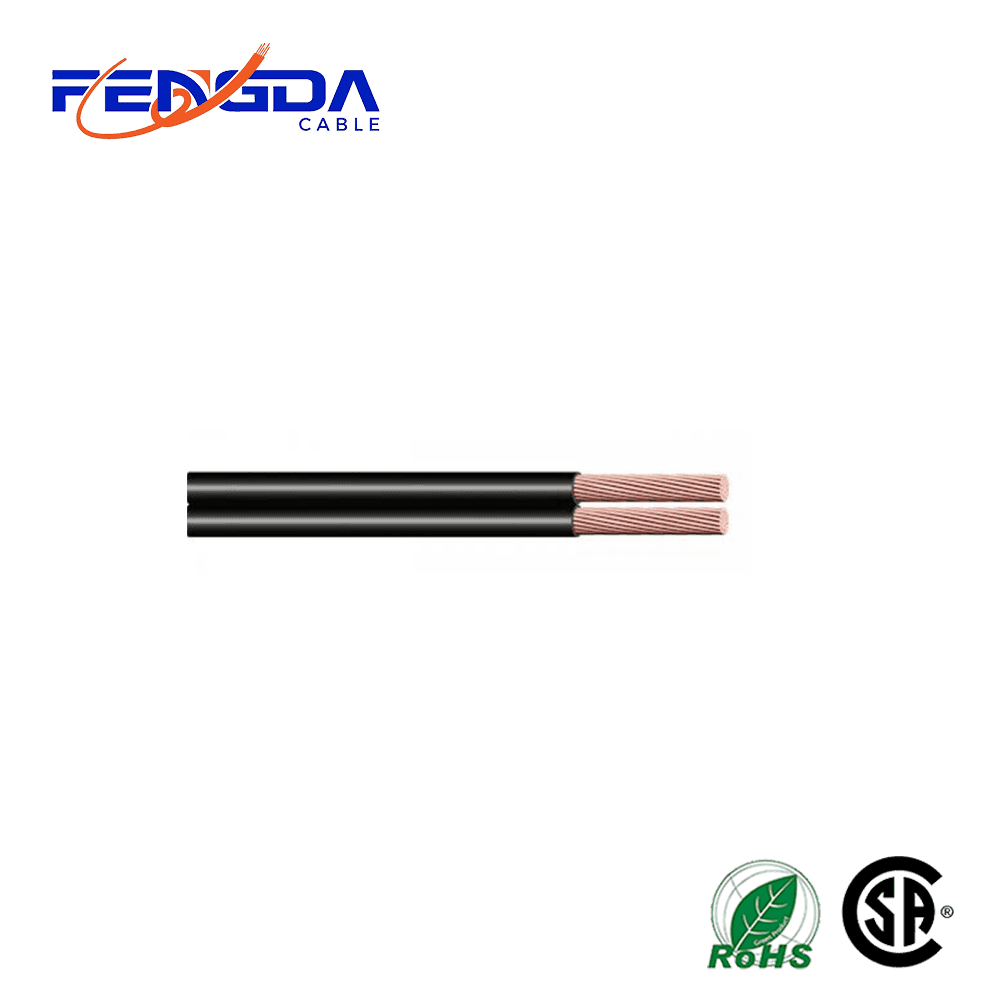

NISPT-1 (Non-Integral Thermoplastic Parallel Cord) is a non-integral, parallel cable constructed with two or three flexible stranded bare or tinned copper conductors, typically 18 AWG or 20 AWG . It features a dual-layer PVC insulation system, consisting of a color-coded primary insulation over each conductor (0.38 mm thick) and an overall transparent or color-coded PVC jacket (also 0.38 mm thick), giving it a distinctive "parallel cord within a jacket" appearance . The cable is rated for 300 volts and available in temperature ratings ranging from 60°C to 105°C . It passes UL VW-1 and CSA FT2 flame tests and complies with UL 62, UL 1581, and CSA C22.2 No.49 standards.
Send Inquiry
NISPT-1 cable is designed for light-duty electrical applications in general-purpose electronic and electrical equipment power supply cords . Typical applications include household appliances such as clocks, fans, radios, lamps, and similar small electrical devices where a non-integral (two-layer) construction provides additional insulation protection . It is commonly used for internal and external interconnection wiring in instruments, meters, power equipment, and automation devices.
