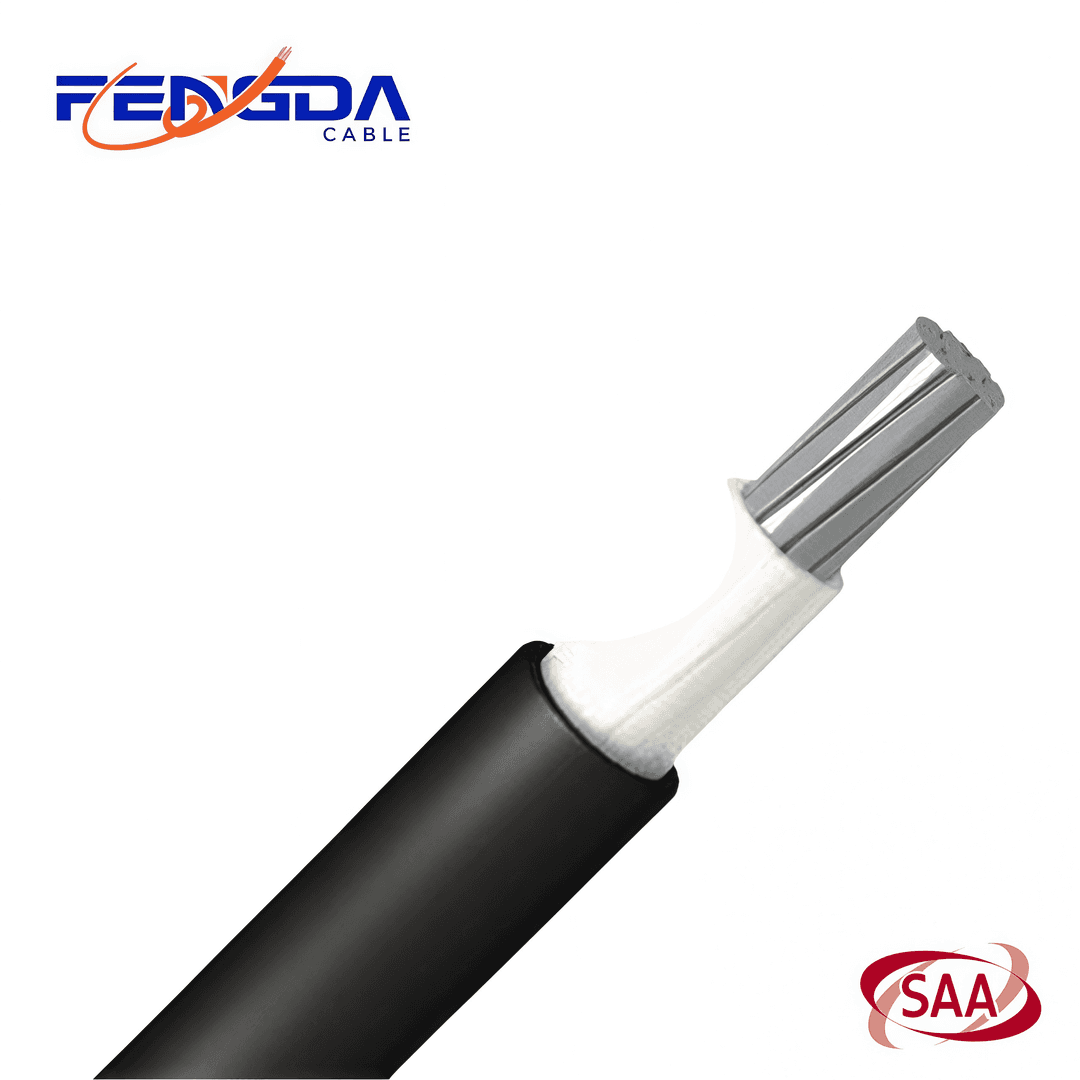

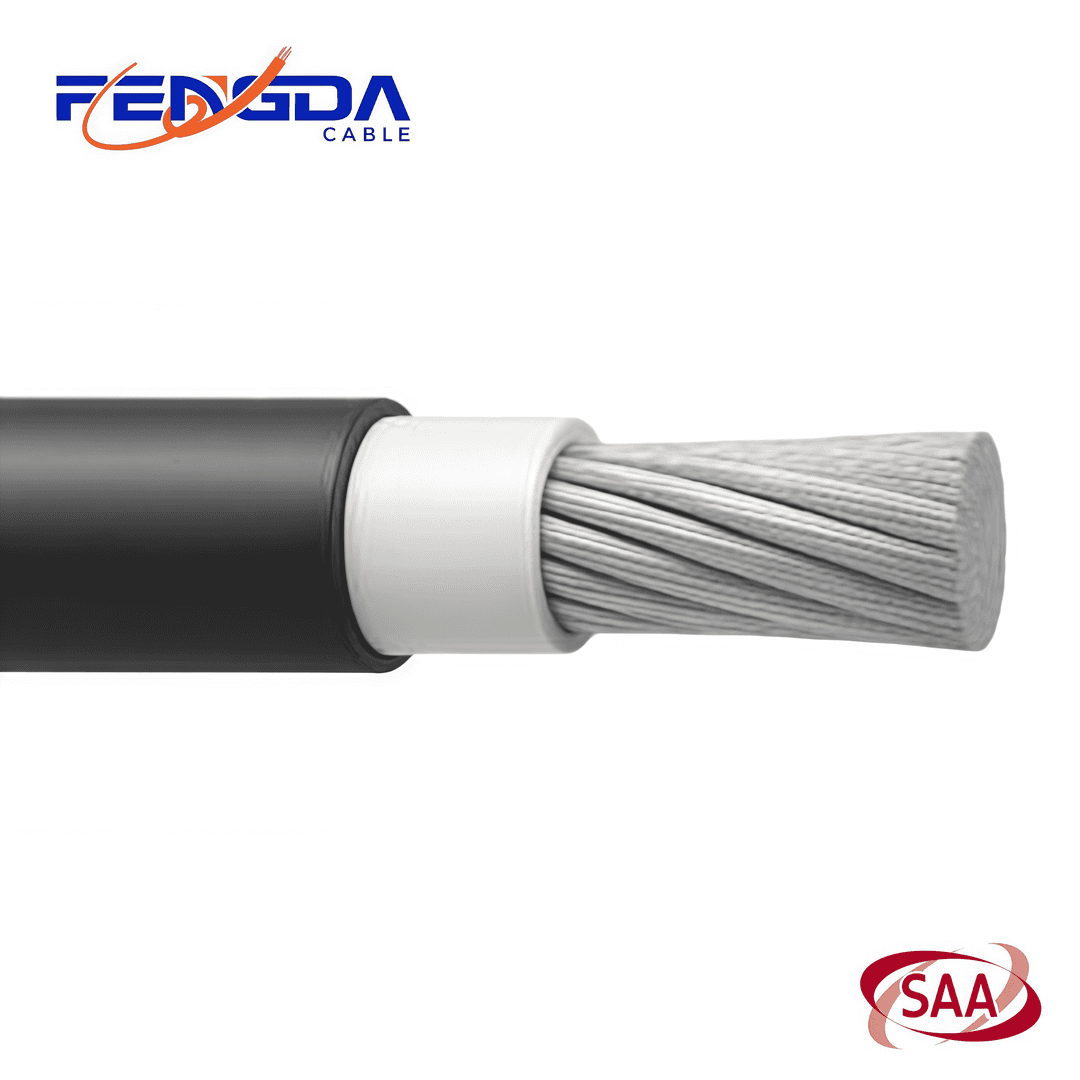

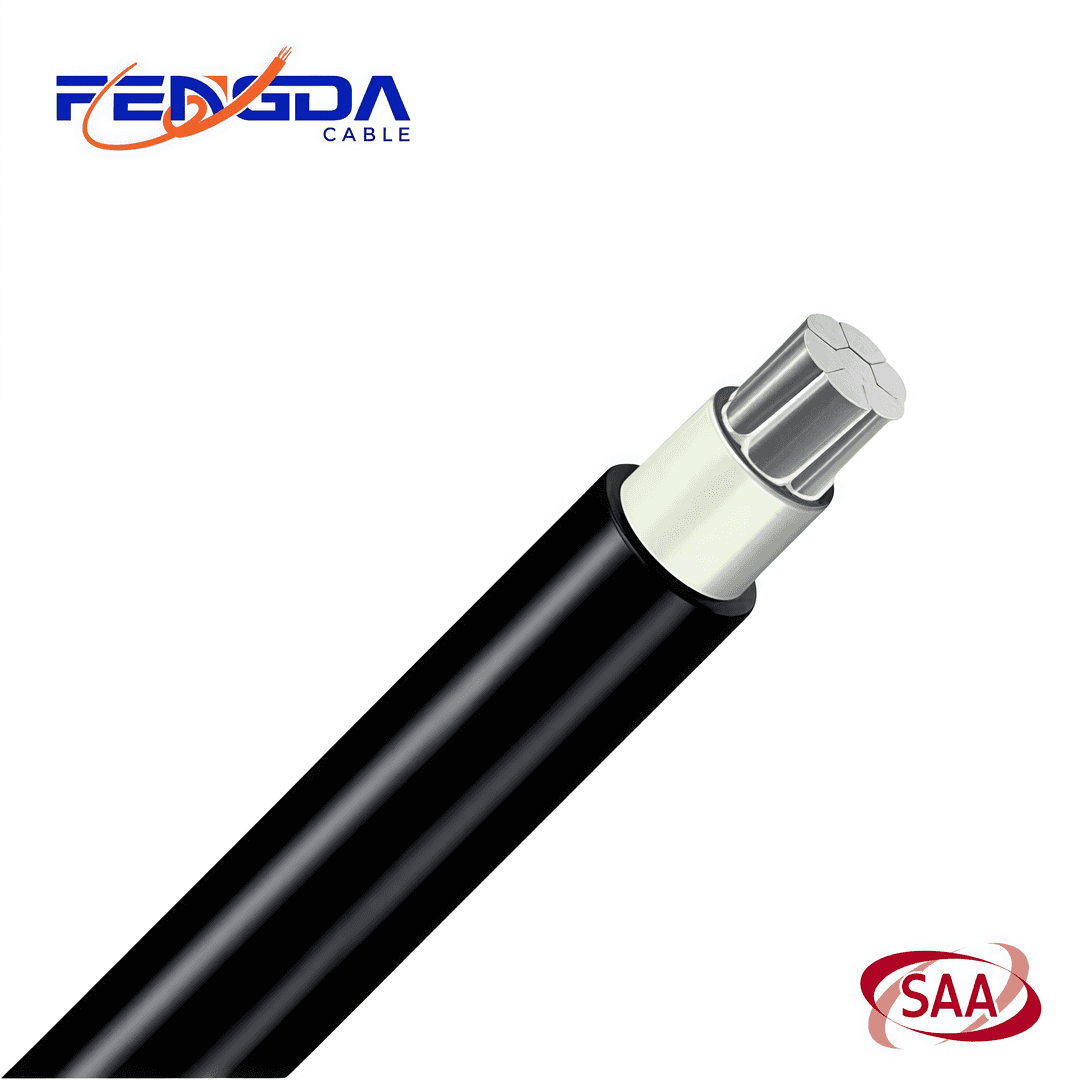

AL/XLPE/PVC SDI Cable 0.6/1 kV
Description
Conductor: Class 2 Aluminium
Insulation: XLPE X-90
Sheath: PVC 5V-90
Core Identification
White
Sheath Colour
Black
Technical Data
Voltage Rating: 0.6/1kV
Operating Temperature: -40°C to +90°C
Short Circuit Temperature: 250°C for 5 sec
Standards Compliance
AS/NZS 5000.1 AS/NZS 1660.5.6 (Equivalent to IEC 60332-1)
AS/NZS 3808 AS/NZS 1660.5.1 (Equivalent to IEC60332-3-24)
AS/NZS 1125
Send Inquiry
Technical
Application
Mostly used for buildings and industrial plants where not subject to mechanical damage. Suitable for installation indoor/outdoor, enclosed in conduit, and in underground duct.
Package
