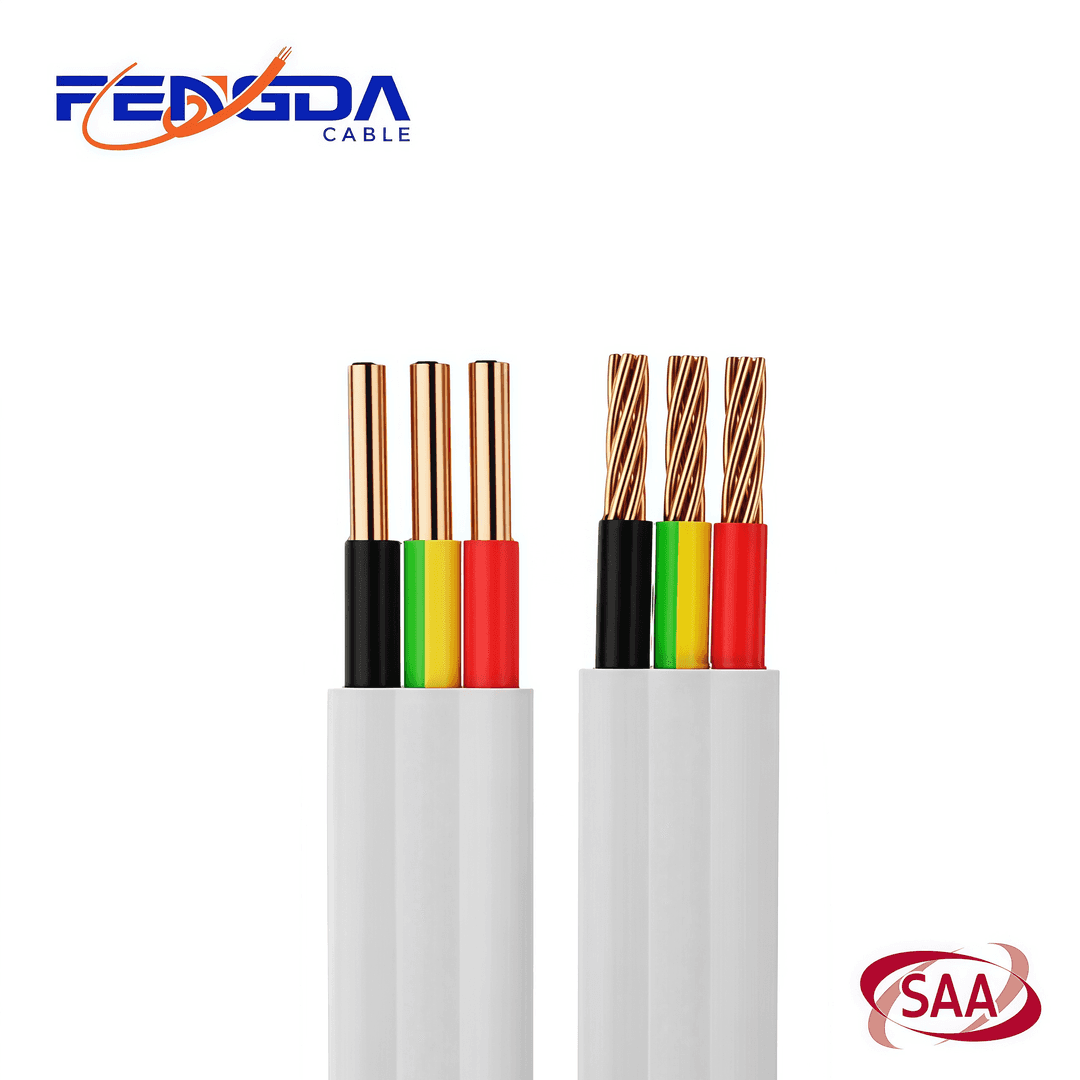

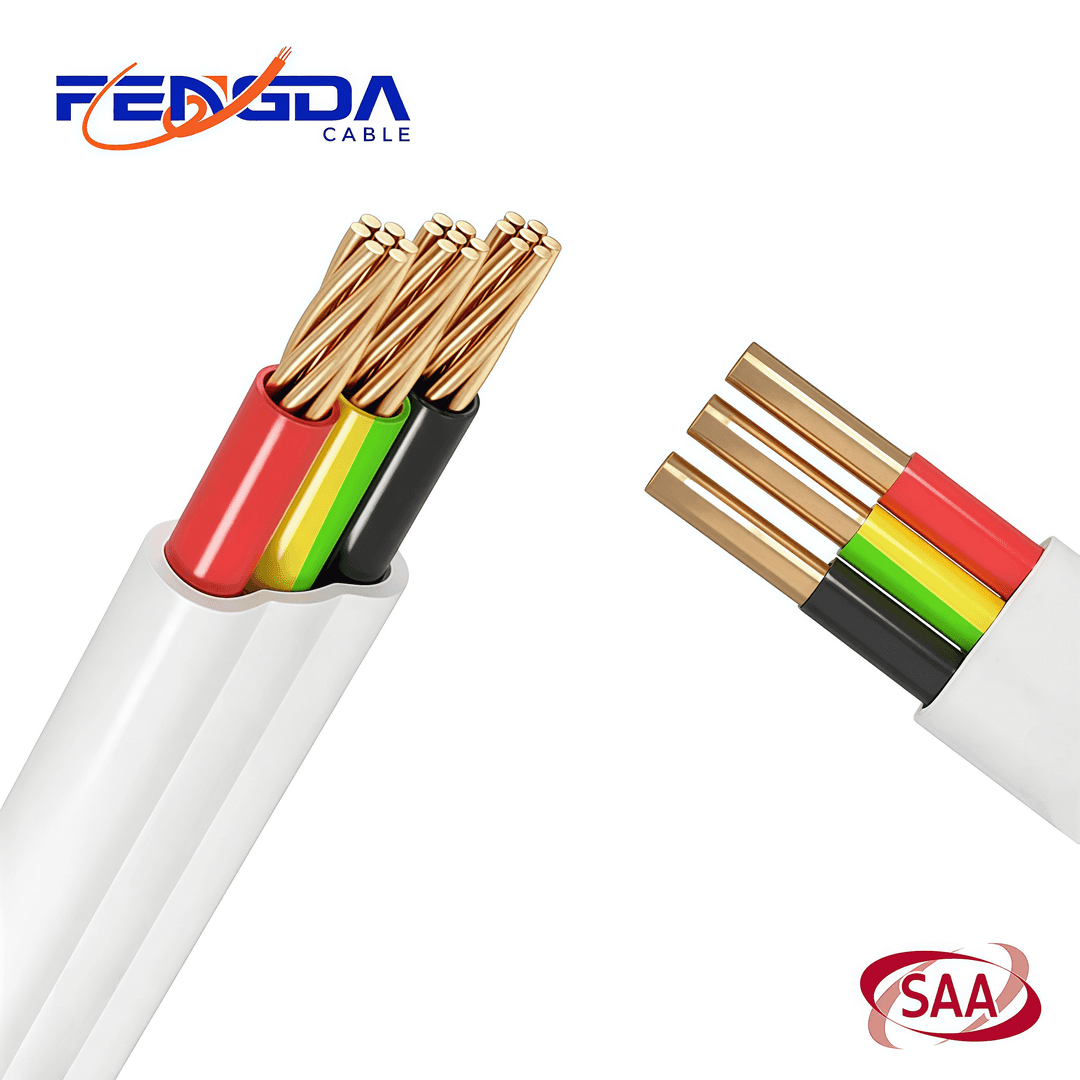

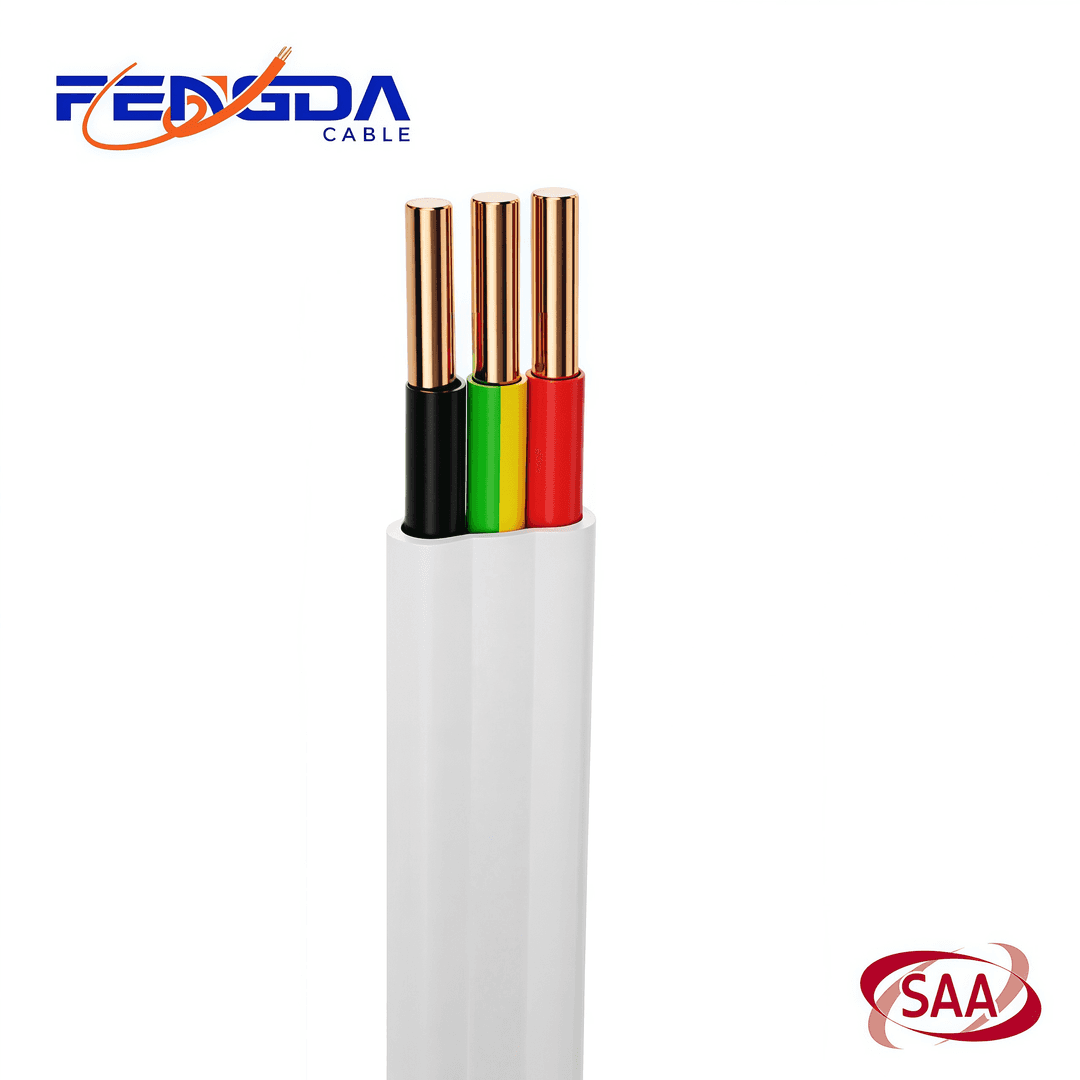

PVC TPS Flat Cable Twin and Earth
Conductor:
Plain annealed copper conductor to AS/NZS 1125
Insulation: V-90 PVC
Colours:
2C: Red、Black
3C: Red、White、Blue
2C+E: Red、 Black、Green/Yellow
3C+E: Red、White、Blue、Green/Yellow
Sheath: 3V-90 PVC
Colour: White
Approvals
AS/NZS 5000.2 Electric cables—Polymeric insulated Part 2: For working voltages up to and including 450/750V
Behaviour in flame and fire
Flame retardant
Temperature range
Normal operating temperature: +90 °C Minimum operating temperature: 0 °C
Send Inquiry
Technical
Application
For general wiring, unenclosed, enclosed in conduit, for domestic, commercial and industrial installations where not subject to mechanical damage.
Package
