★Rated temperature:60ºC/105ºC
★Rated voltage:300V
★According to:UL62/C22.2 No 49
★3-wire with green grouding conductor
★PVC insulation
★Copper conductor
Send Inquiry
| No of conductor | Conductor | Insulation | Jacket | ||||
| AWG | Sectional Area(mm2) | Constructure | Nom.thcik(mm) | Nom.Diam(mm) | Nom.thick (mm) | Nom.Diam(mm) | |
| 2 | 20 | 0.52 | 21/0.18 | 0.38 | 0.76 | 2.62*4.80 | |
| 3 | 18 | 0.82 | 41/0.16 | 2.65*6.10 | |||
| 2 | 20 | 0.52 | 21/0.18 | 1.85 | 2.70*5.35 | ||
| 3 | 18 | 0.82 | 41/0.16 | 2.15 | 3.00*8.70 | ||

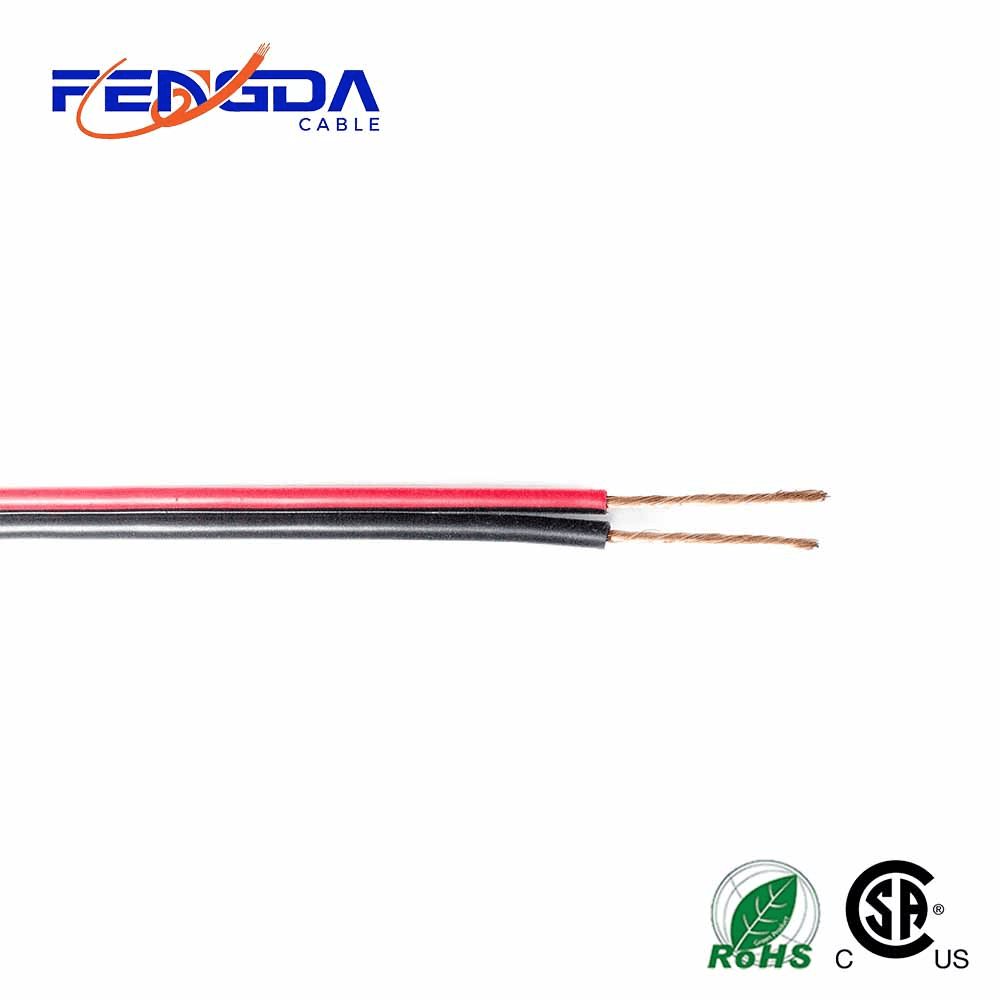

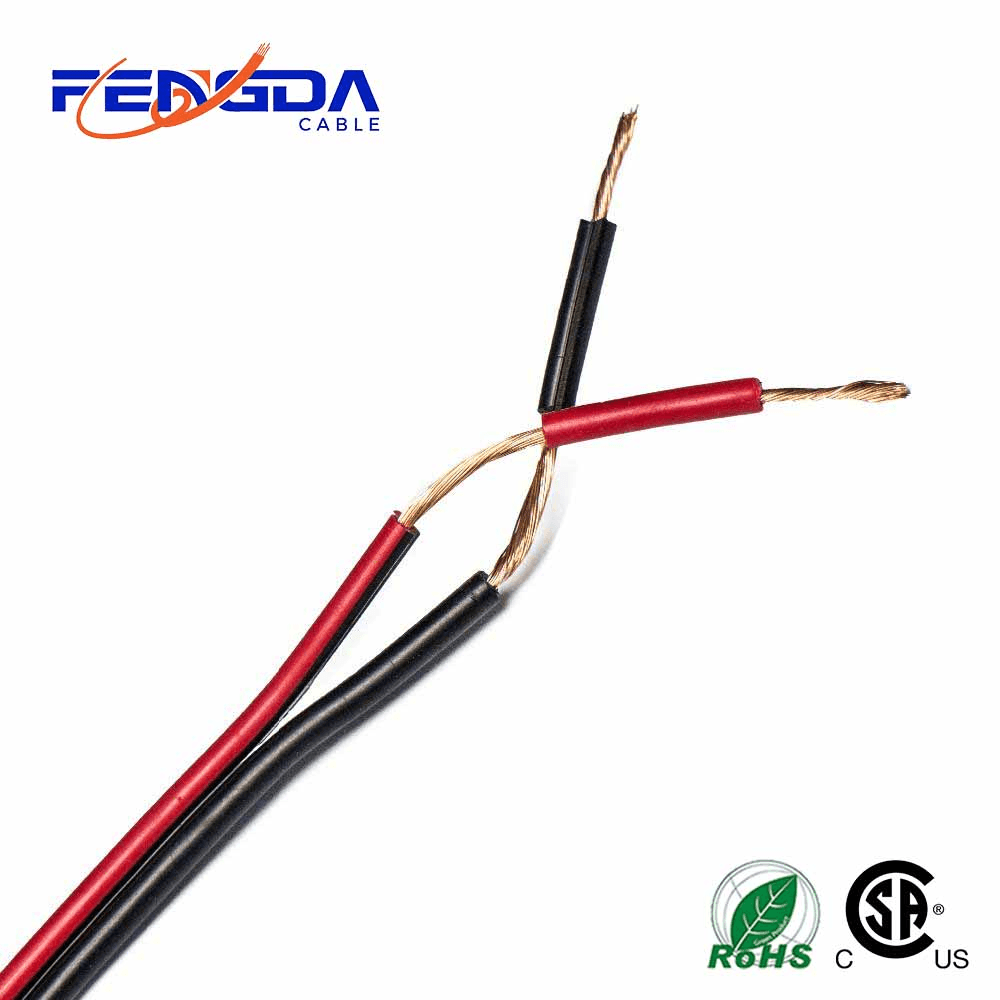

NISPT-1/NISPT-2 300V light duty cable is engineered with high-purity stranded annealed soft copper conductors, double-layer PVC insulation and sheath. Available in 20-16AWG, it is officially CSA certified and meets FT1, FT2, VW-1 flame retardant safety standards. This cable is designed for light duty flexible cord applications for pendant lamps and portable use, featuring excellent flexibility, abrasion resistance and flame resistance. It is suitable for pendant lighting wiring, small portable devices, light duty indoor connections and power supply for small household appliances, complying with North American UL & CSA standards for light duty flexible cords.
