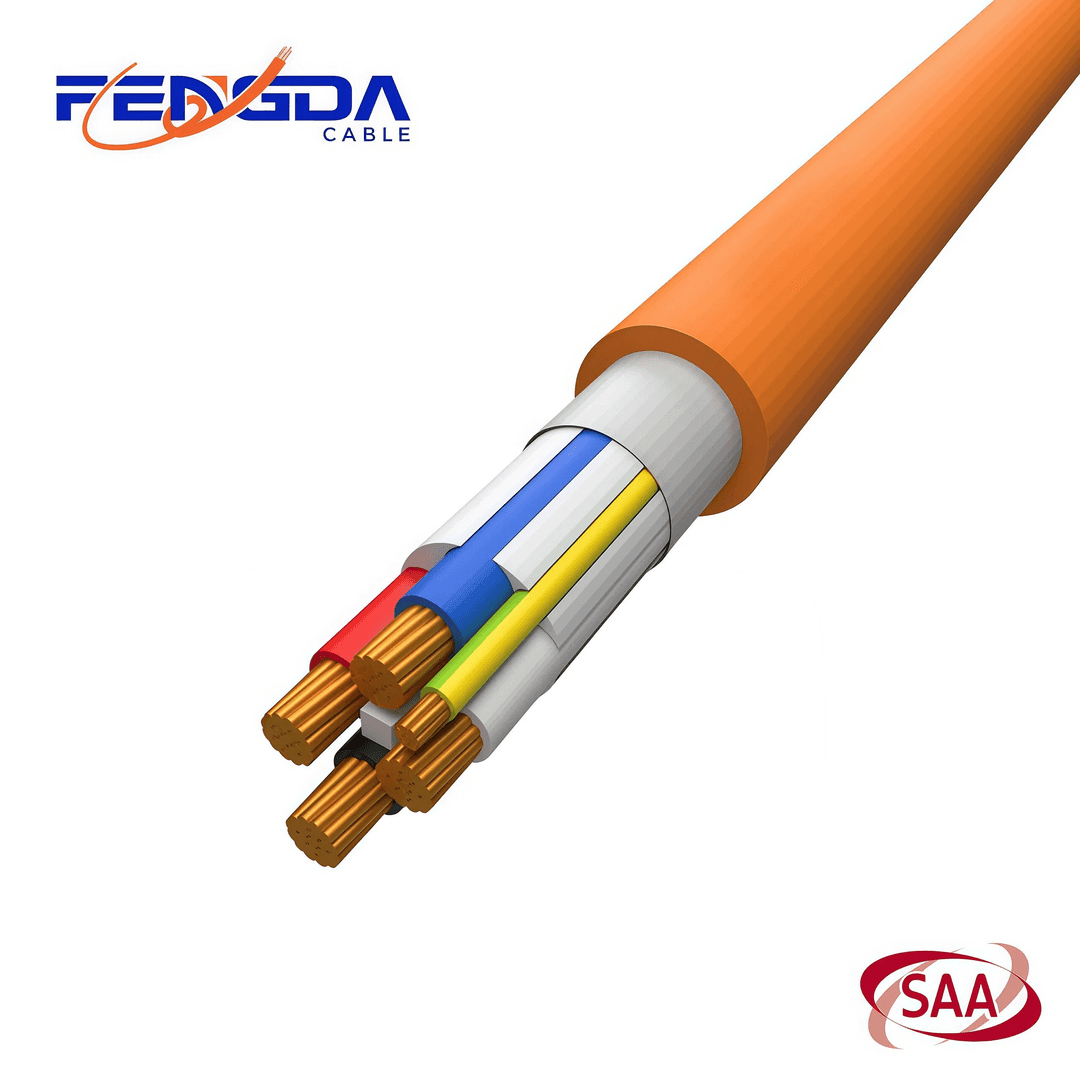

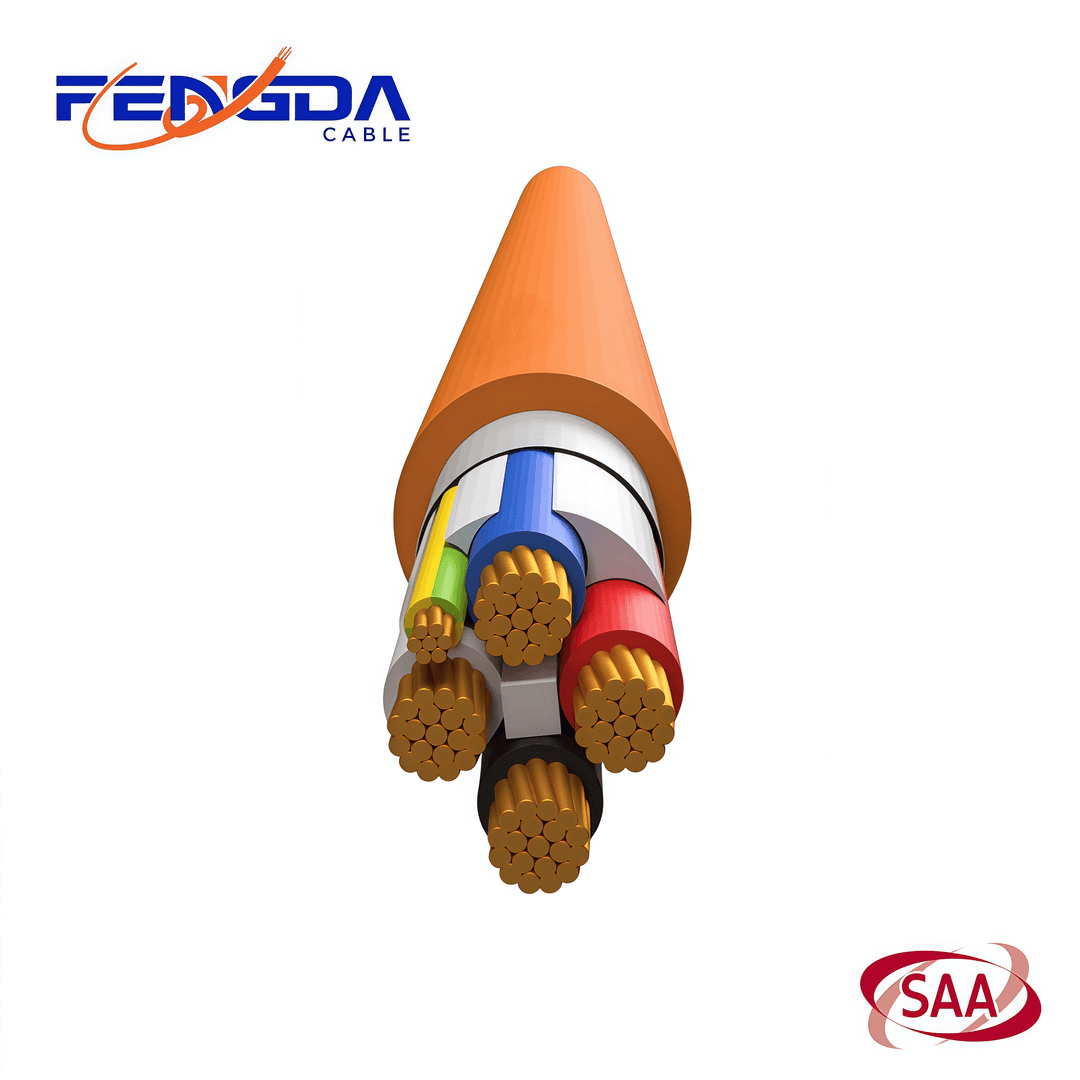

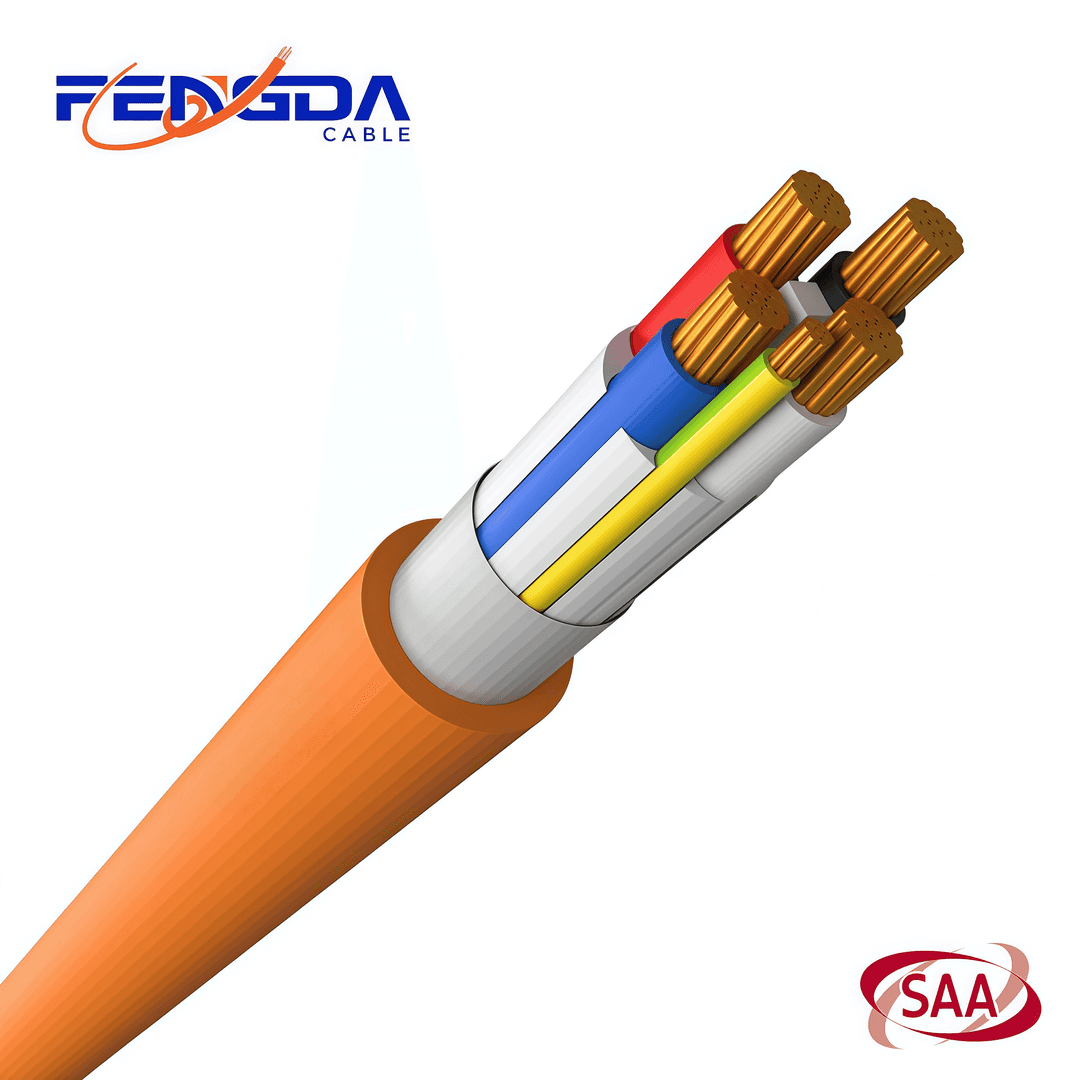

0.6/1kV Orange Circular Cable
Description
Conductor: Class 2 Plain Annealed Copper
Insulation: PVC V-90
Sheath: PVC 5V-90
Core identification
Red, White, Blue, Green/Yellow
Sheath Colour
Orange

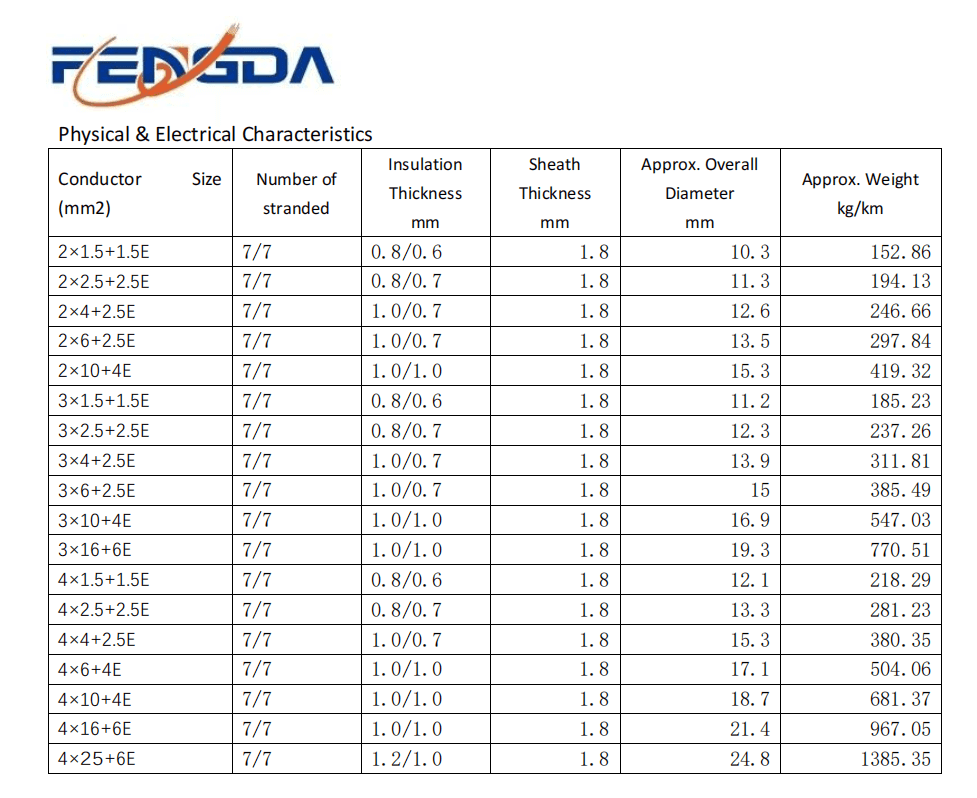

Technical Data
Voltage Rating: 0.6/1kV
Operating Temperature: -25°C to +75°C, Maximum 90°C
Short Circuit Temperature : 160°C
Standards Compliance
AS/NZS 5000.1
AS/NZS 3808
AS/NZS 1125
AS/NZS 1660.5.6 (Equivalent to IEC 60332-1)
AS/NZS 1660.5.1 (Equivalent to IEC60332-3-24)
Send Inquiry
Technical
Application
For mains, submains and subcircuits unenclosed, in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage and where out of balance currents may require a neutral equal in size to the active.
Package
