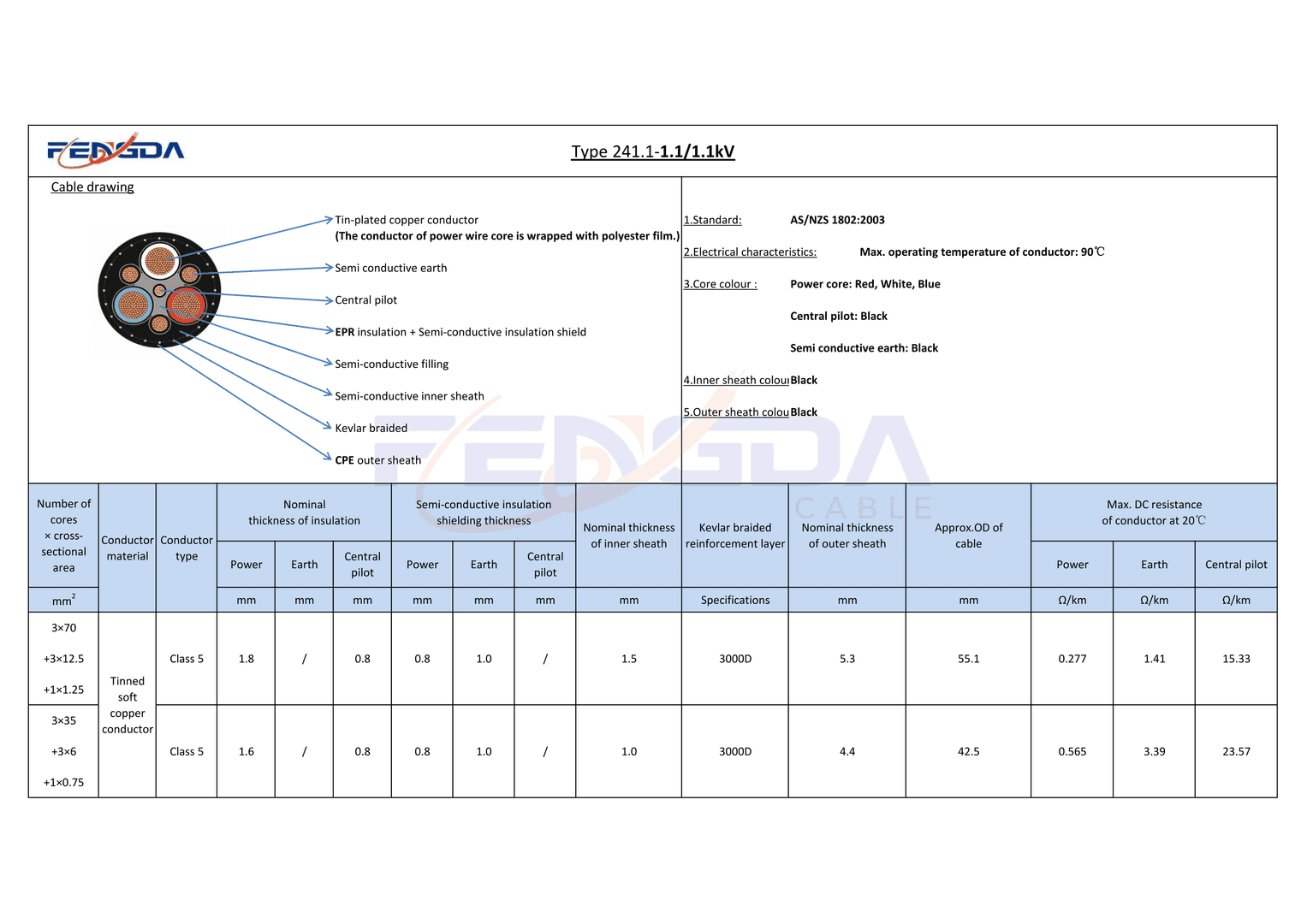

TYPE 241 1.1-11
Cable description

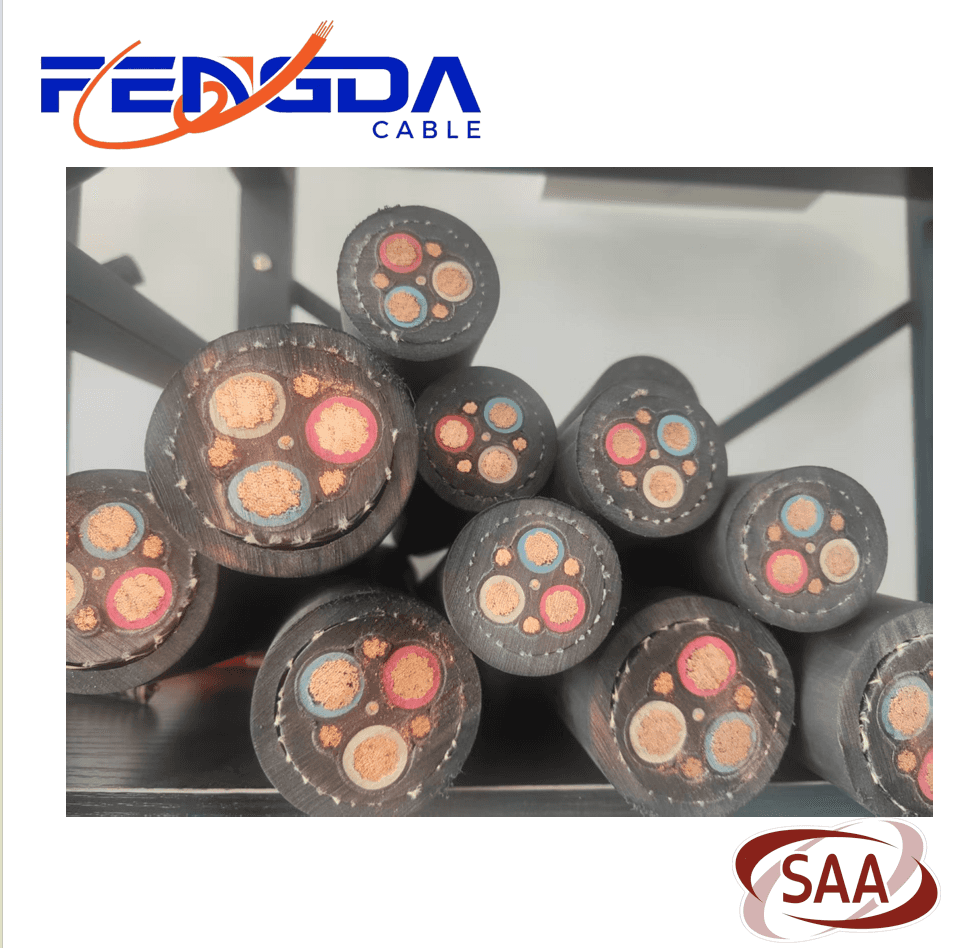

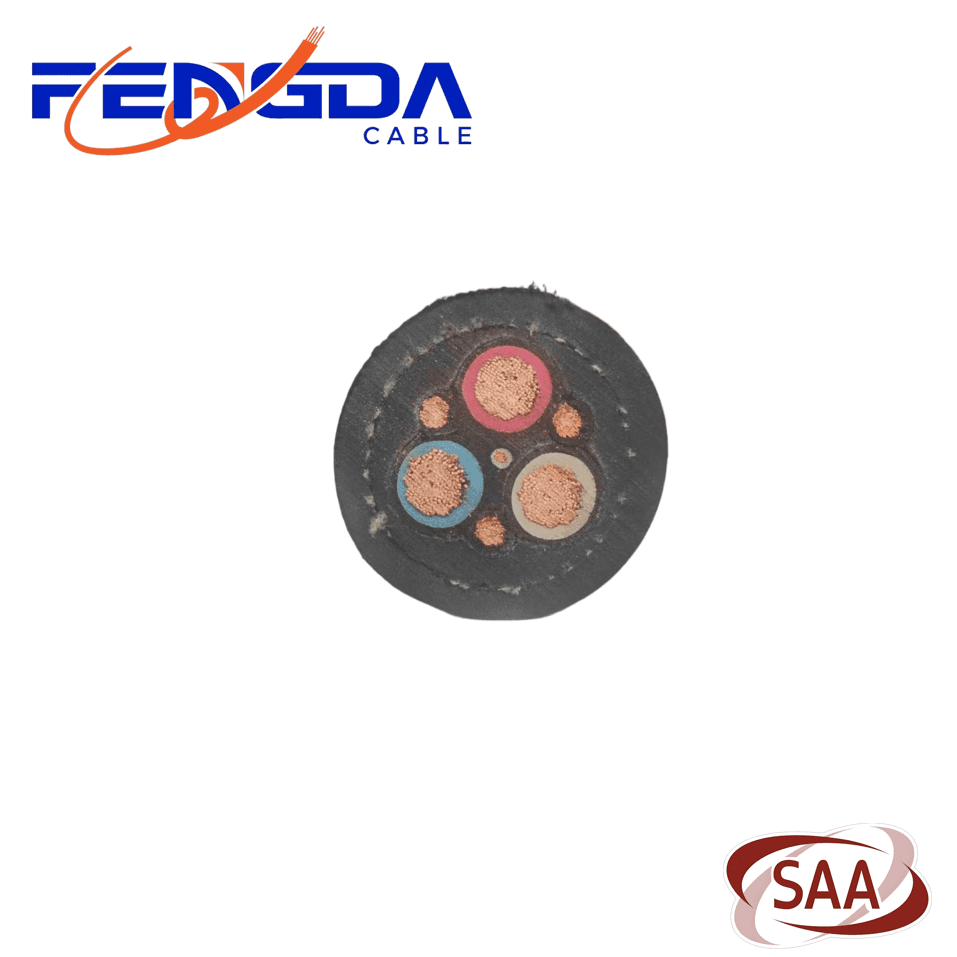

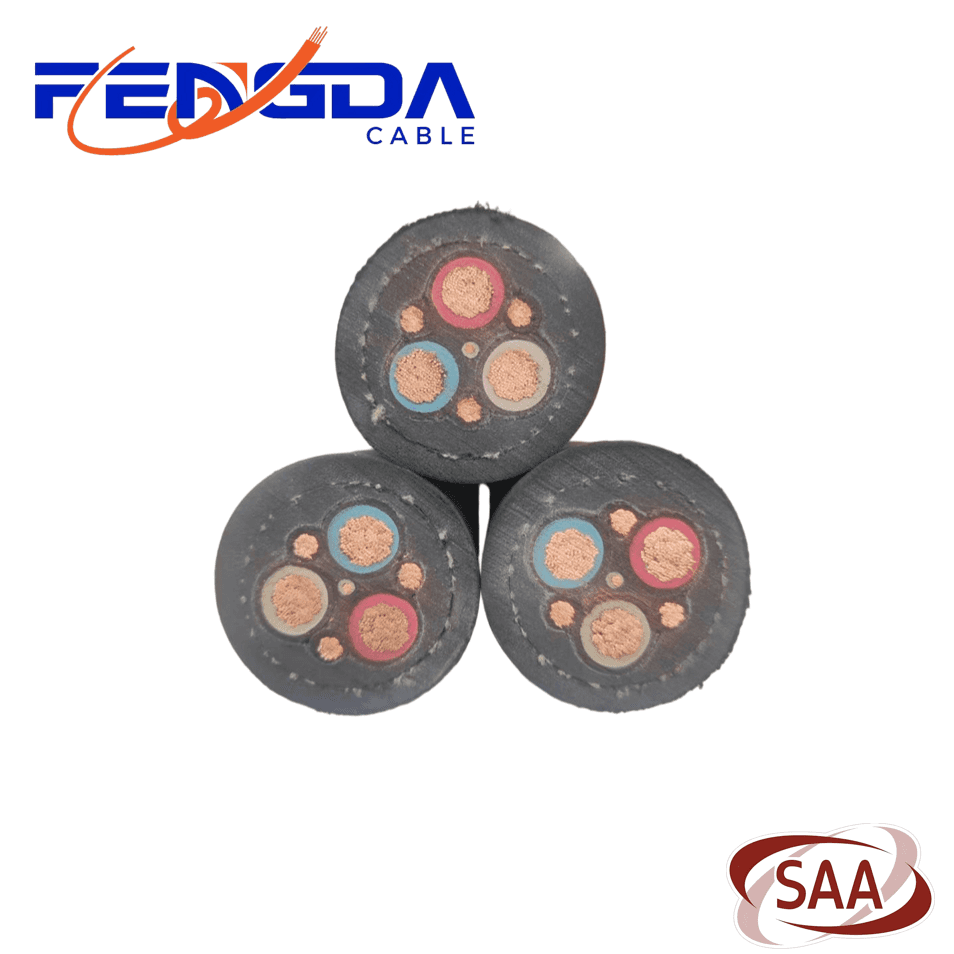

Semiconductive screened cable for general use
to AS/NZS 1802.
Approvals
AS/NZS 1802
Behaviour in flame and fire
Fire retardant
Temperature range
Maximum operating temperature: +90°C
Minimum operating temperature: -25 °C
Flexibility
Flexible
Resistance to
Chemical exposure: Very good/Frequent
Mechanical impact: Heavy
Water exposure:
Immersion/Temporary coverage
Solar radiation and
weather exposure: Suitable for direct exposure
Send Inquiry
Technical
Application
1.1/1.1 kV to 11/11 kV general purpose cable used for continuous
miners, or feeder cables to pumps. Also commonly used for
monorails supplying DCBs and longwalls. Typically, a more
flexible cable for use is a semiconductive screen instead of a
metal screen.
